Corona Renderer 1.3 for 3ds Max released

As you might have noticed, Evermotion is now offering Corona Renderer compatible models. Currently we offer two collections:

• Archmodels for Corona vol. 1 (trees and plants)
• Archinteriors for Corona vol. 1 (collection of best-selling interiors)

Corona Renderer 1.3 for 3ds Max - New Features:

• Animated Corona Proxy - Added animation support to Corona Proxy. It uses the same .cproxy format as the old static proxy.

• Anisotropy Improvement - Reflection anisotropy is now in object space by default (highlights are rotated when rotating the object). UVW-space anisotropy can be optionally enabled.

• Added Corona Layered Material - new Layered Material works like 3ds Max Blend material, but it combines multiple materials instead of just two. This for example allows quick setup of complex rusted or worn-off materials.

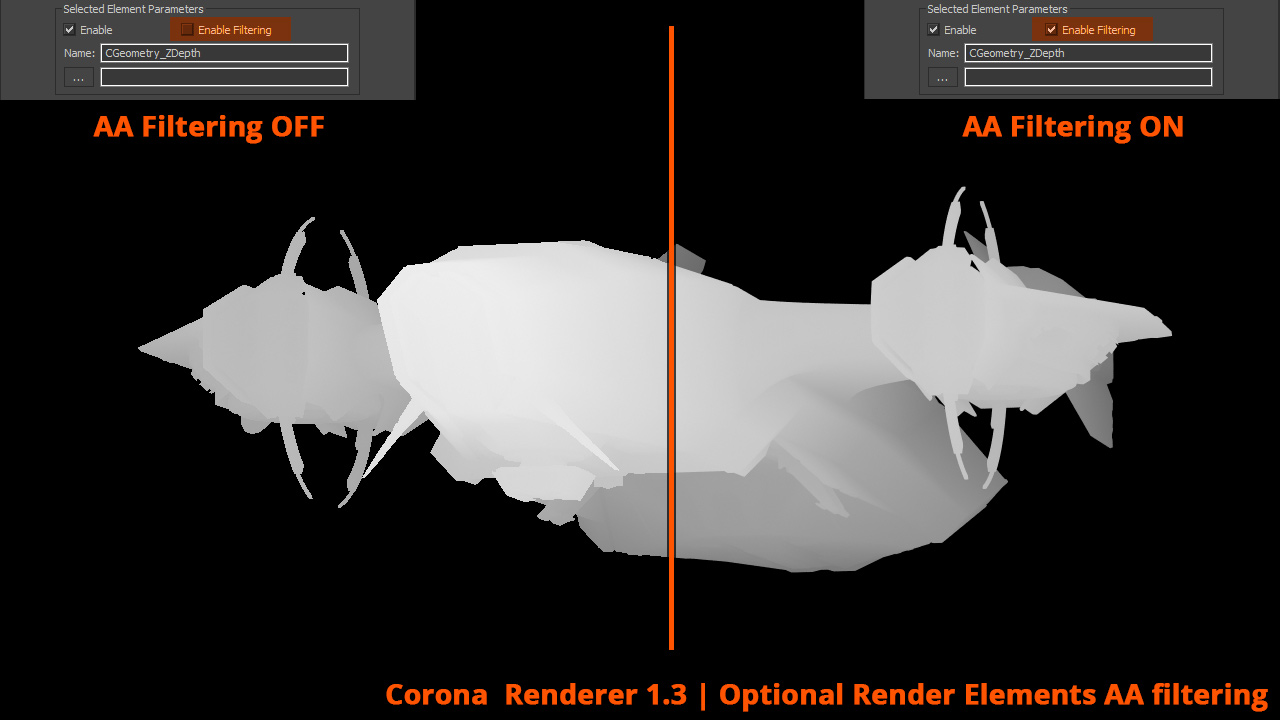

• Optional Render Elements Anti-Aliasing - Render elements can now have anti-aliasing enabled or disabled individually. Both elements with and without AA can be rendered in a single shot. Also the “Render elements without AA” checkbox was removed as it is no longer needed.

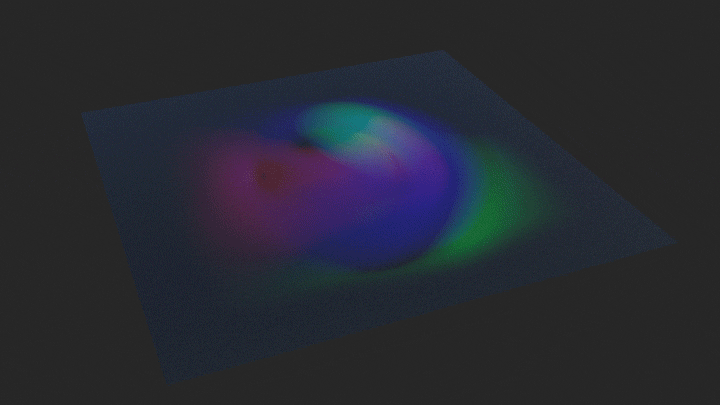

• Vector Displacement -  continued improving the displacement mapping after the 1.2 version by adding vector displacement support (using the 3ds Max vector displacement map).

• Advanced Render Selected - Added advanced “Render selected” option – render mask by an include list, object ID, or viewport selection. Excluded objects are not rendered directly, but they still show in reflections/GI. This option is suitable for tweaking a single object in the scene without having to compute the rest. It can render the selected objects both on top of black background (for compositing) and on existing render (for previews), based on the “clear VFB” option.

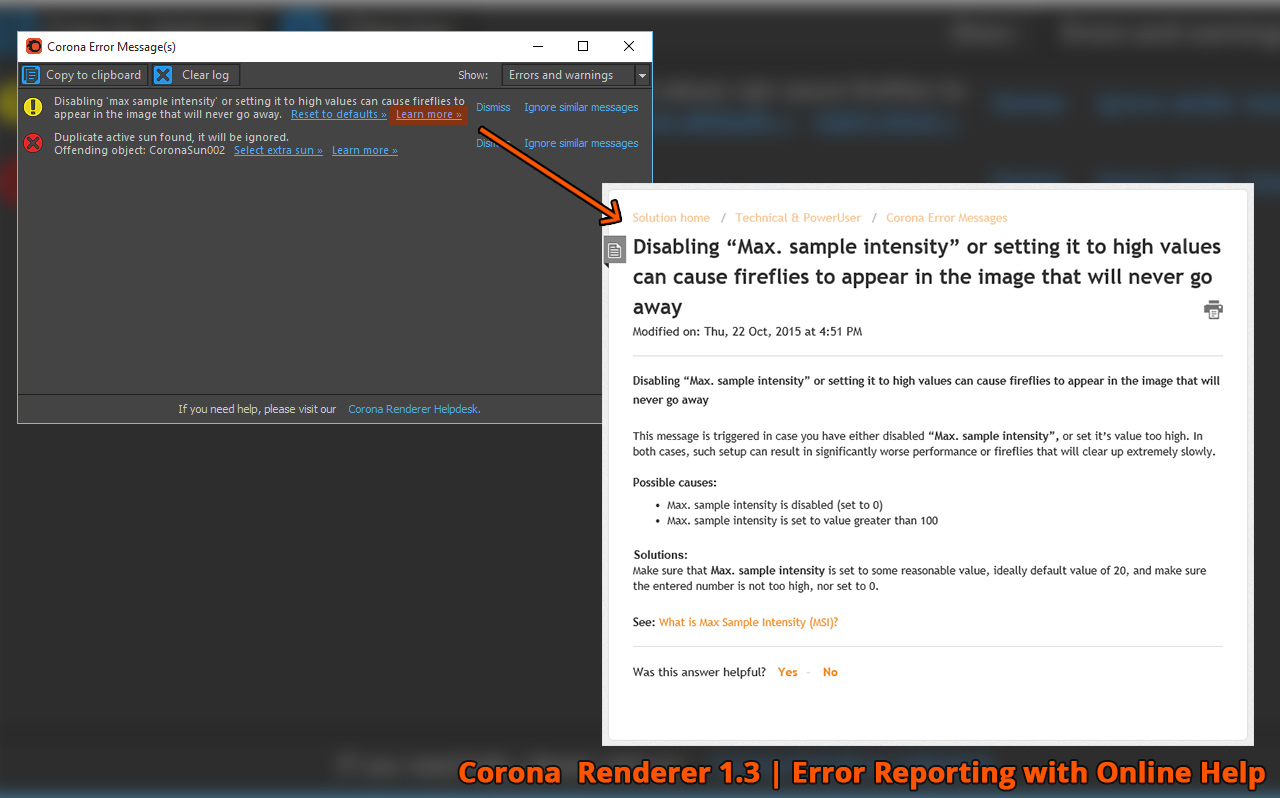

• Error Reporting with Online Help - The error window was completely reworked to give a clear overview of all problems and to allow better filtering of issues. Errors now have a “Learn more” button that opens our support portal page with more info on each individual problem, and a button that selects the problematic object in the scene, or corrects the problem.

• Also many new error types are now reported, such as:
  • Having “Bitmap paging” or “Fault Tolerant Heap” turned on (both can cause massive slowdown when rendering)
  • Incorrect 3ds Max gamma settings
  • Unsupported maps/materials, missing textures, …
  • Using unsupported 3ds Max features that cause unexpected behavior, such as multipass camera effects
  • Running low on RAM

Finally, some error messages are now forwarded from DR slaves to the master PC – such as missing texmaps, missing Corona license, Corona version mismatch, or missing Backburner. This makes debugging distributed rendering much easier.

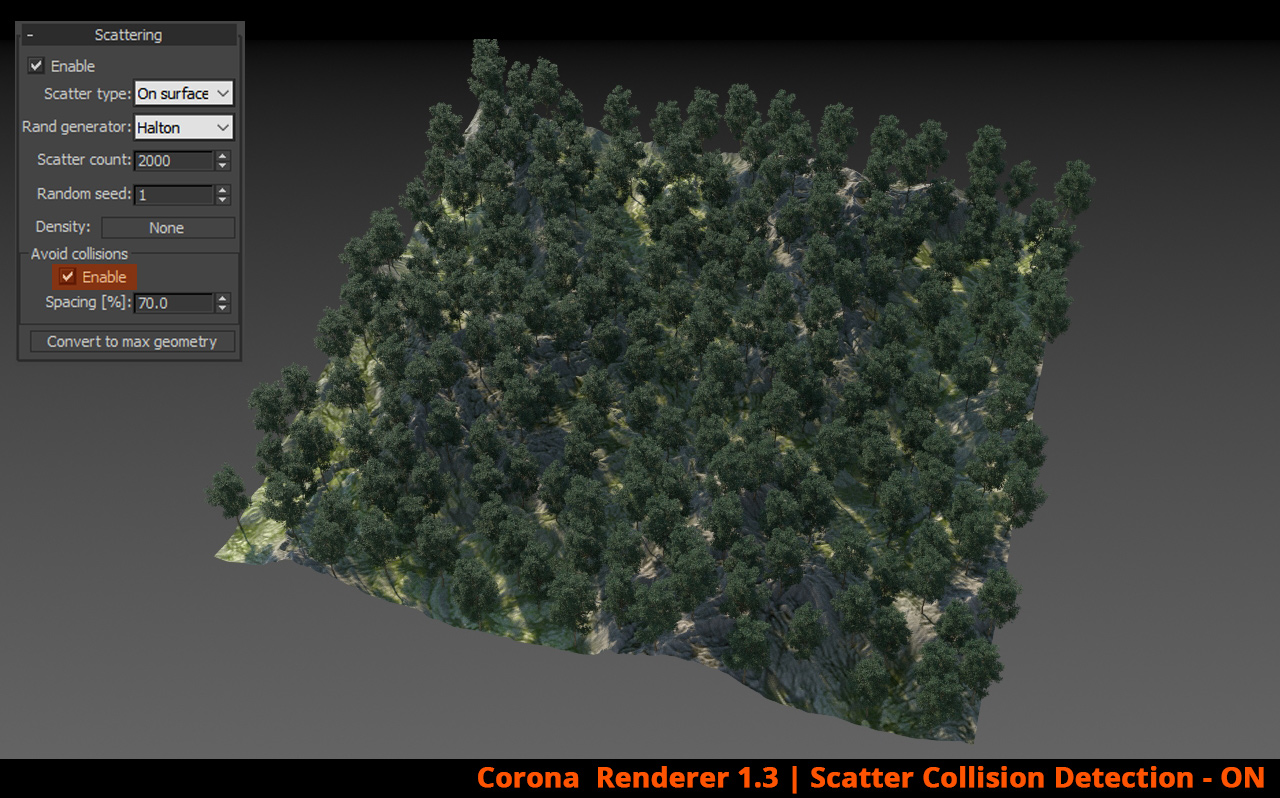

• Corona Scatter – Collision Detection - Much denser packing of scattered instances is now generated when “Avoid collisions” is on and the instances are randomly rotated. We also added the “strictness”parameter – it relaxes the self-intersection constraint a bit, making it possible to densely fill an area with almost non-intersecting instances.

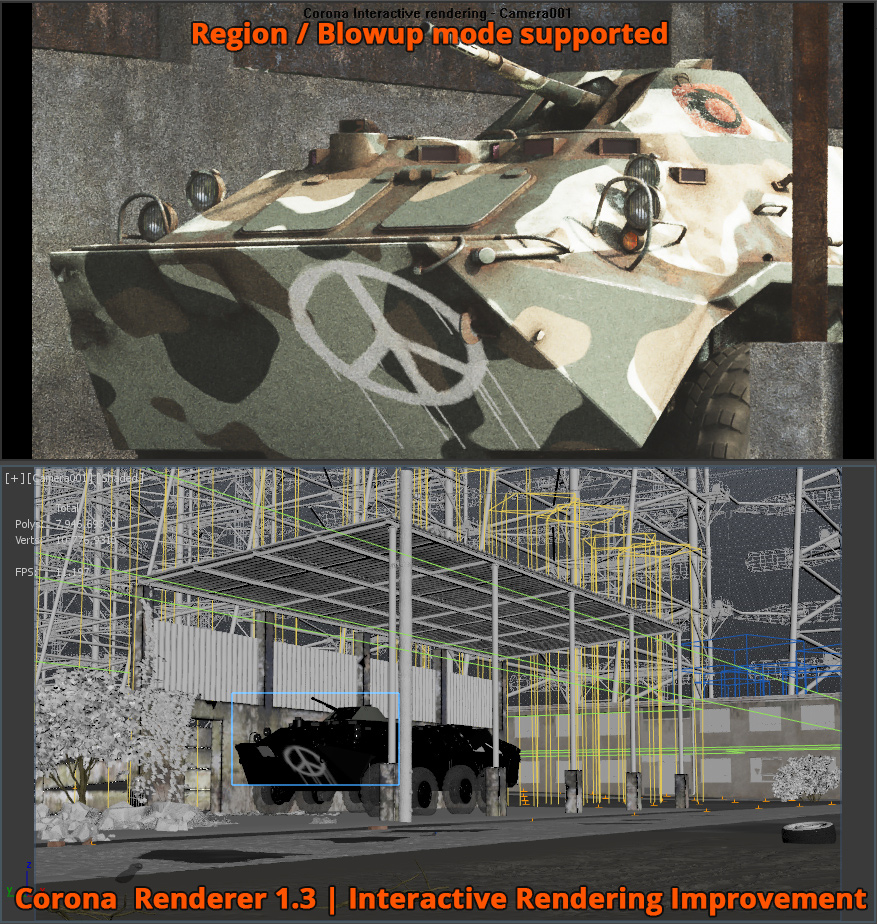

• Interactive Rendering Improvements - Interactive rendering now respects the currently selected aspect ratio. It also supports the region/blowup modes.

• 64+ Threads Support - Corona Renderer now correctly works with more than 64 threads without any workarounds such as running DR on the same machine.
• Better Backburner Support - Corona built-in distributed rendering now works when submitted through Backburner.

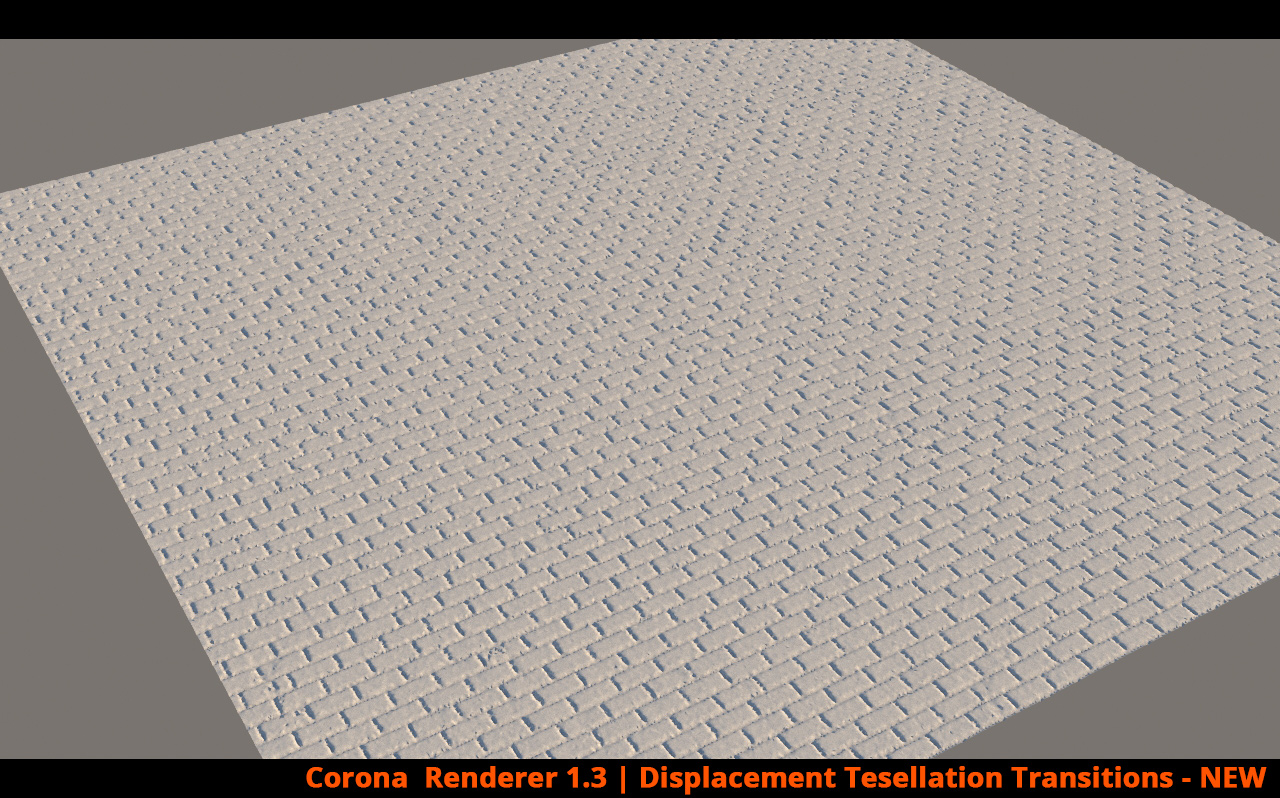

• Displacement Improvements -  removed the visible transitions between displacement tessellation levels.

• Rounded Edges Is Now a Separate Map - Rounded edges option was moved to a separate map, and now has an include/exclude option. More improvements are coming up.
• Compatible Materials/Maps Displayed Only - Only compatible materials/maps are now displayed when picking new materials/maps in the material editor.

Other Improvements

• Displacement improvements
• Decreased polycounts with no loss in quality due to improved out of frustum culling.
• Precomputation can now be cancelled.
• Displacement is now properly updated during interactive rendering, when the displacement texture is modified.
• Displacement now reports running out of memory and stops the render instead of crashing.
• UHD cache
• Number of records created when precomputing animation in multiple frames is no longer limited to 200k.
• When loading cache file fails, new cache is computed from scratch instead of reverting to path tracing.
• Interactive rendering
• After doing regular render during interactive rendering session, the interactive rendering does not immediately start over after finishing the render (which previously caused the render to be overwritten).
• Corona VFB can now be maximized when doing interactive rendering.
• Generally faster scene parsing.
• Fixed light leaking happening when using reflective materials in some specific situations, and fixed black spots happening on reflective objects at grazing angles.
• New colored opacity handling system: opacity color is now always interpreted as a color. Opacity map is evaluated as mono (unless loading old scene with legacy checkbox on, then it is evaluated as color). This is to make the usual scenarios work in 3ds Max.
• Future-proofed the loading of scenes from different versions – there should be less problems when reverting from new version to old one (starting with reverting to 1.3 from future new build)
• Updated the Corona material converter to version 1.20 and proxy exporter script to version 0.04, both of which bring various improvements.
• Improved IES lights sampling, resulting in less noise.
• Increased anti-aliasing quality of the first pass.
• Various improvements in licensing server/activation system based on user feedback.
• Made clearing VFB more consistent and fixed several of the use-cases related to it.
• Added additional bump map option to CoronaNormalTex.
• Submaps of Corona materials/maps are now displayed in track view.
• RaySwitch and layered materials are now created with a default CoronaMtl as sub-material.
• IOR value lower than 1 in textures will now render as 1/value, so you can use LDR maps without using output manipulation. This is to improve compatibility with applications such as Substance Painter.
• UI changes
• Improved the Corona “About” dialog
• Improved the Activation Dialog
• New Corona VFB Icons
• Improved docked interactive VFB idle screen
• Better icons in the installer
• Texts in licensing/DR servers can now be directly selected and copied
• Render dialog tabs now remember their position when the dialog is closed and re-opened
• DR tab in VFB is no longer immediately cleared when rendering stops
• Pressing start button in Corona VFB now works more like pressing F9 in that it renders only a single frame in the current time, not the entire animation
• Right-click pixel probe values in VFB are now more precise (1.0 instead of 0.99994)
• DR server is now being selected to be installed by default
• When renaming Corona Sun/Light, the target is now renamed too

Bug fixes

• Combining Different Light Types
• Fixed slow rendering when different light types were combined in a single scene.
• Corona Renderer - Combining Different Light Types-OLDCorona Renderer - Combining Different Light Types - NEW
• Fireflies when Using Lights Inside Volumes
• Fixed bug causing fireflies when using rectangle/disk lights inside volumes.
• Corona Renderer - Fix - Fireflies in volumes
• Self-Intersections Fix
• Fixed self-intersections with extremely thin triangles.
• Corona Renderer - Fix - Self-Intersections

List of Various Bugfixes:

• Fixed excessive noise when the same map is in scene environment and also reflection environment override.
• Removed/massively reduced flickering when using textured corona lights in animation.
• Fixed a bug causing interactive rendering to restart immediately after it is launched for the first time.
• CoronaMultiMap in instance mode no longer changes color when editing scene in interactive mode.
• Displacement now works if plugged to any slot of CoronaMultiMap.
• Fixed Corona MultiMap not respecting input textures alpha.
• Fixed Incorrect bitmap screen mapping when using crop render mode.
• Corona RaySwitch/Layered materials now allow “show map in viewport” for nested sub-materials.
• Fixed hang ups in some specific cases when CoronaAO is used.
• Fixed Self-illumination sometimes giving incorrect reflected intensity. Now it should always give same results regardless of PT/AA samples.
• Fixed Google Chrome freezing up when Corona is rendering.
• Particle Flow crash fixes.
• Fixed freezing of interactive rendering/3dsmax when editing materials in mtl editor.
• Fixed black pixels (NANs) caused by faulty texmap plugins and by displacement used with faulty (non-manifold) geometry.
• Various CoronaBitmap fixes: incorrect mapping when CoronaBitmap was used as direct visibility override environment map and seen through thin glass, UI freezes when changing the bitmap, loading of 32-bit targa files, …
• Fixed Corona Scatter working incorrectly when offsetting its pivot.
• Fixed Corona Light wrong intensity in Lights Explorer and State Sets.
• Estimated remaining time is now correct when rendering with DR.
• Fixed error causing a DR render slave randomly behaving like master.
• Cancelling batch render will no longer save empty frames of the rest of the sequence.
• Pressing Ctrl+Shift+Escape to start Task Manager will no longer cancel Corona rendering if VFB is focused.
• Fixed color selector in 3ds Max Mult/Sub material sometimes randomly jumping left and right with Corona material.
• Fixed a bug causing interactive rendering to re-tessellate objects when changing material parameters not related to displacement.
• Fixed the most common source of “interactive renders image twice after a change” problems.

Are you hyped now? Then go ahead and download the new version here: https://corona-renderer.com/download/

Are you not Corona user? Buy Corona license in Evermotion Shop

What’s Ahead?

Before the version 1.4 is released, we will have to rewrite parts of Corona Renderer to make it MacOS and Linux compatible. Yes, it will allow the C4D version to run on Mac.

We are aware of bugs in the current Corona for Cinema 4D version, and we are currently finishing the Corona for C4D Alpha 4.1 hotfix. It should come out in days.

Our researchers, Jakub and Petr, are also making significant progress on de-noising, adaptive sampling, and efficient rendering of huge amount of lights. We are expecting to have all these features ready in 1.4, and to have them available in daily builds in matter of weeks.

We are also rewriting our standalone application to make it more powerful by supporting the Corona Proxy format and being able to export/import 3ds Max shader networks.

We will also be moving our office again – our tech office is becoming too tight (and cold). Next blog post might be from our new place (fingers crossed).

We have started full-time development of the Sketchup plugin. Michal Prokš has joined our team to develop the plugin. Once we will have something usable, we will let you know.

Top image by Bertrand Benoit.
