Creating Vintage Radio in Blender - Tip of the Week

Michal Franczak 2019-12-19 12:53 tutorial  > Blender  > modeling

This Braun CET15 radio was designed by legendary Dieter Rams in 1961. I decided to recreate it in 3d, because I love his minimalistic, elegant design.

Dieter Rams is a German industrial designer and retired academic closely associated with the consumer products company Braun. He is a legend and author of many unique designs. Let's see what we have here...

nr 02264 Untitled

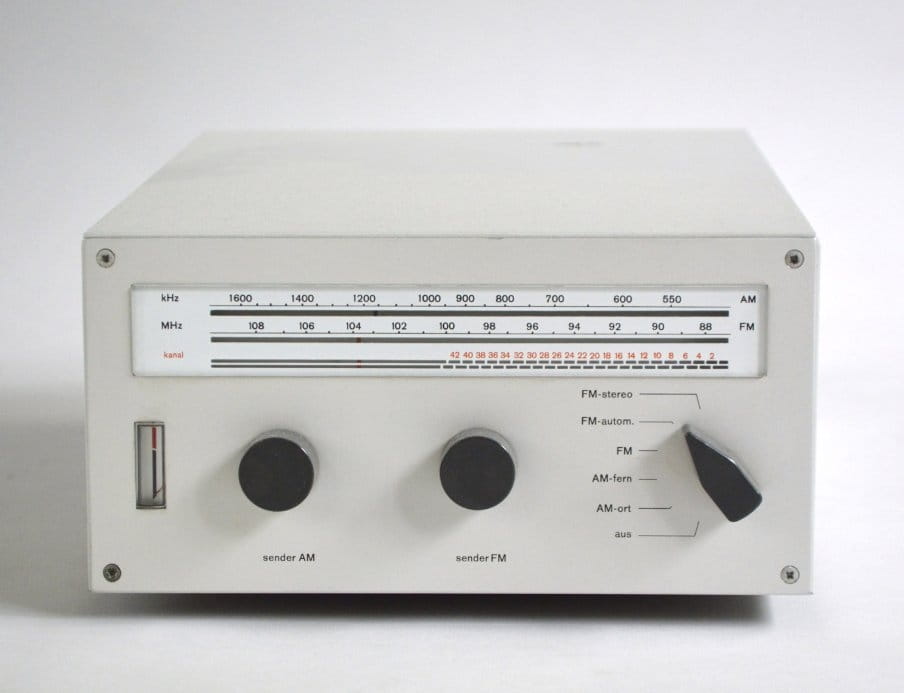

Reference photo - The CET 15 is the tuner element of the first truly modular Braun audio system. Later updated with minor changes by the CET 16. Luckily, there are some reference images on the Internet (although not many). We also know exact dimensions of this equipment: 200 x 100 x 320 mm.



nr 02265 Untitled

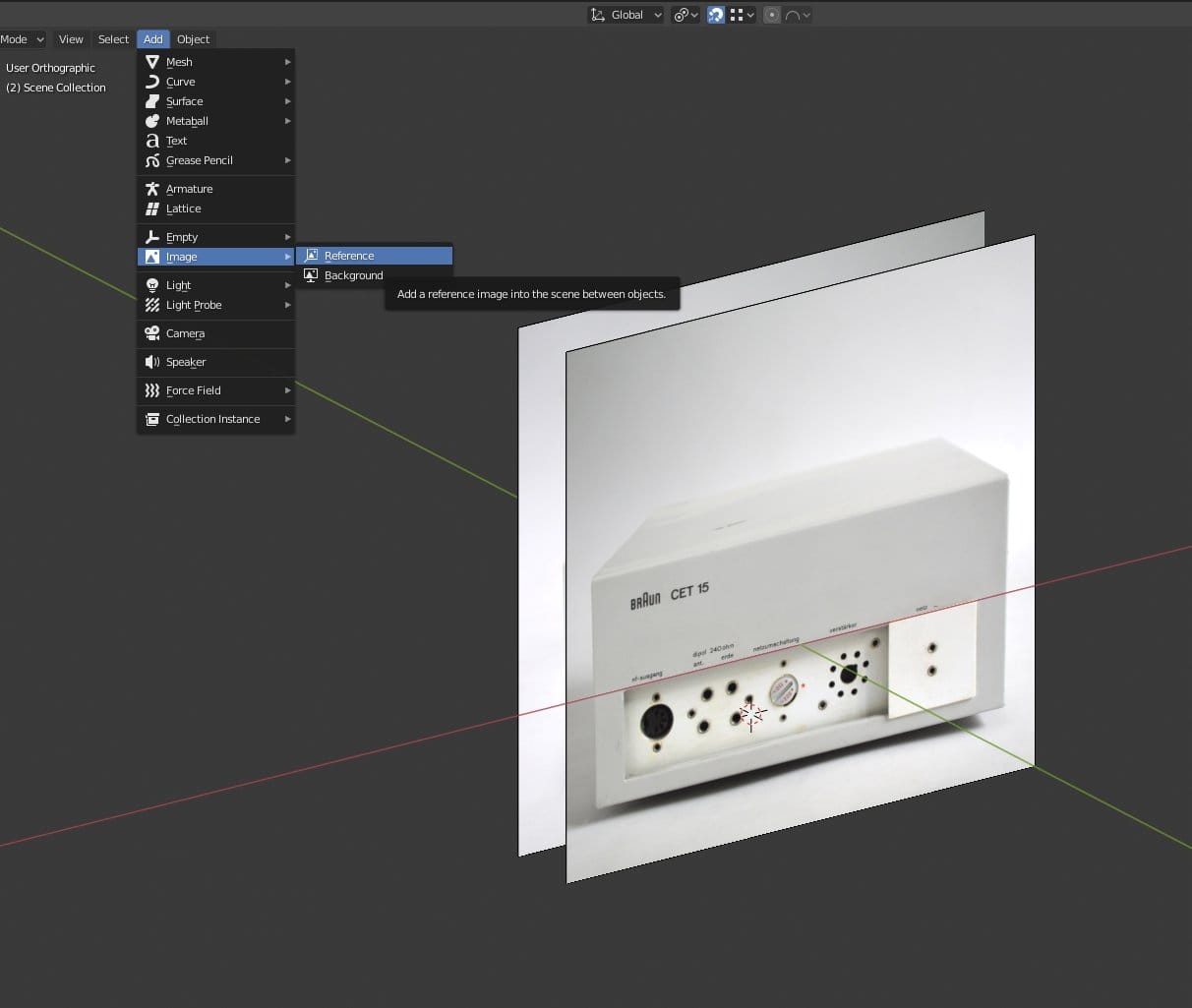

The best way to add reference image is to use Add > Image > Reference menu.



01 reference.gif

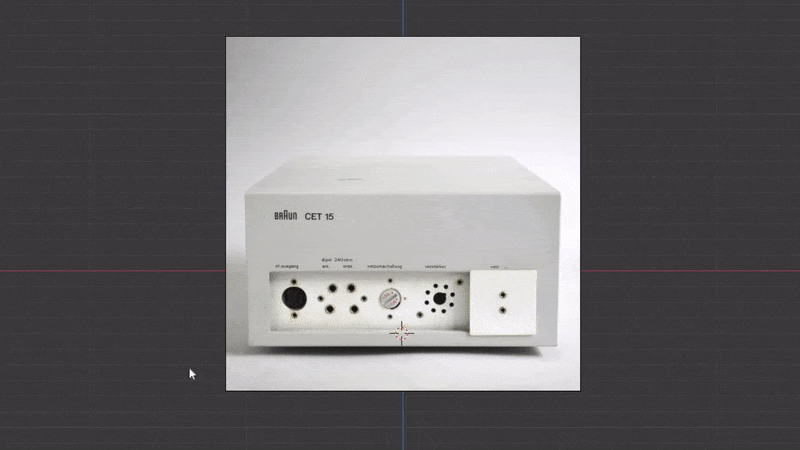

GIF animation - two reference images for front and back of our radio.



nr 02266 Untitled

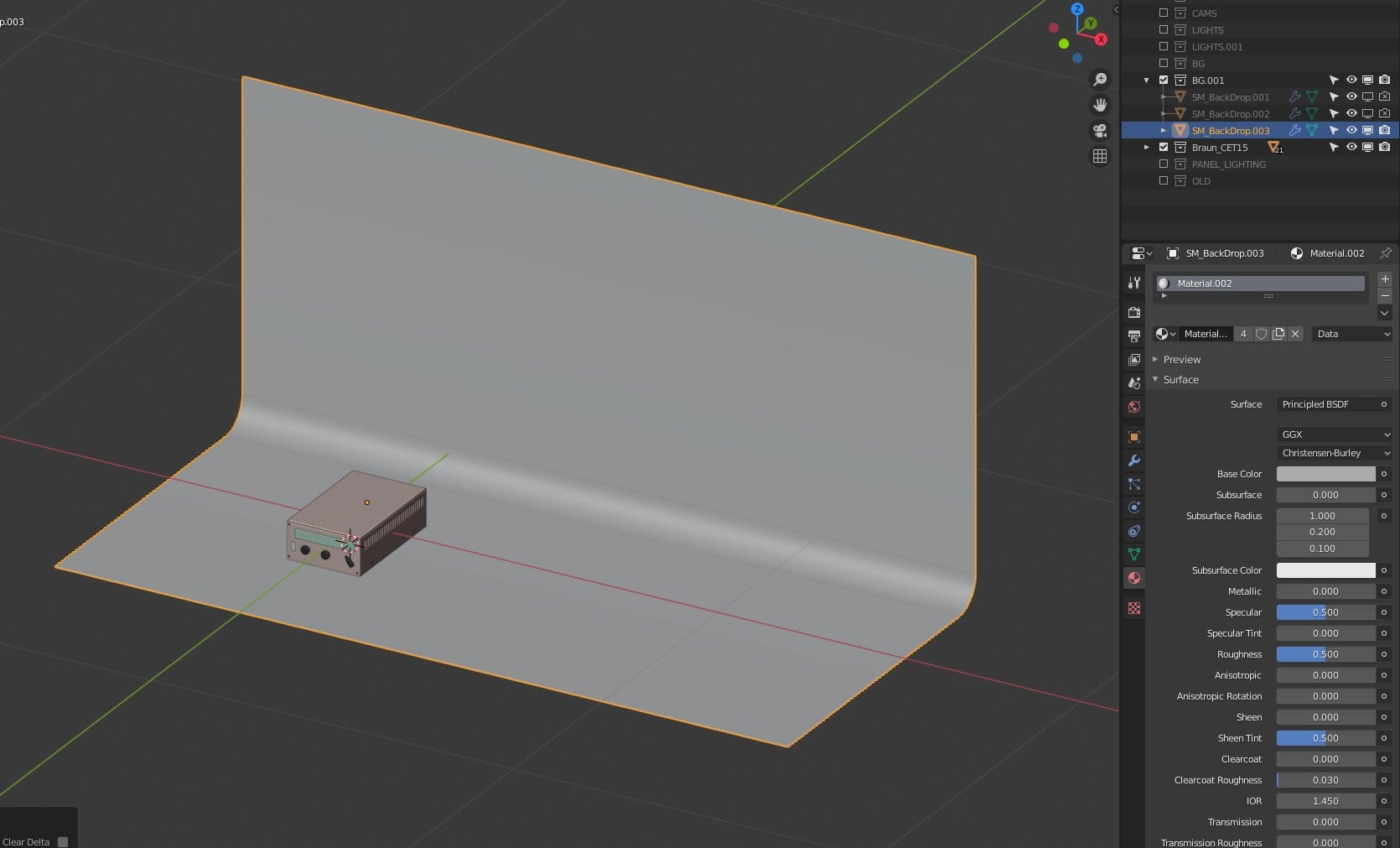

I wanted to have simple studio look. For scene setup I used simple backdrop. Base color is turned down to grey, to achieve greater contrast between white painted metal of radio and the backdrop. As you can see I have some other backdrops in outliner. they are disabled now. I used them for test of different lighting / object / background positions. New Blender 2.81+ outliner is really great, letting us easily rename and move content between collections. I have alse enabled icons for selection, viewport and rendering so I can decide if the object is visible / selectable or not in a one click.



nr 02267 Untitled

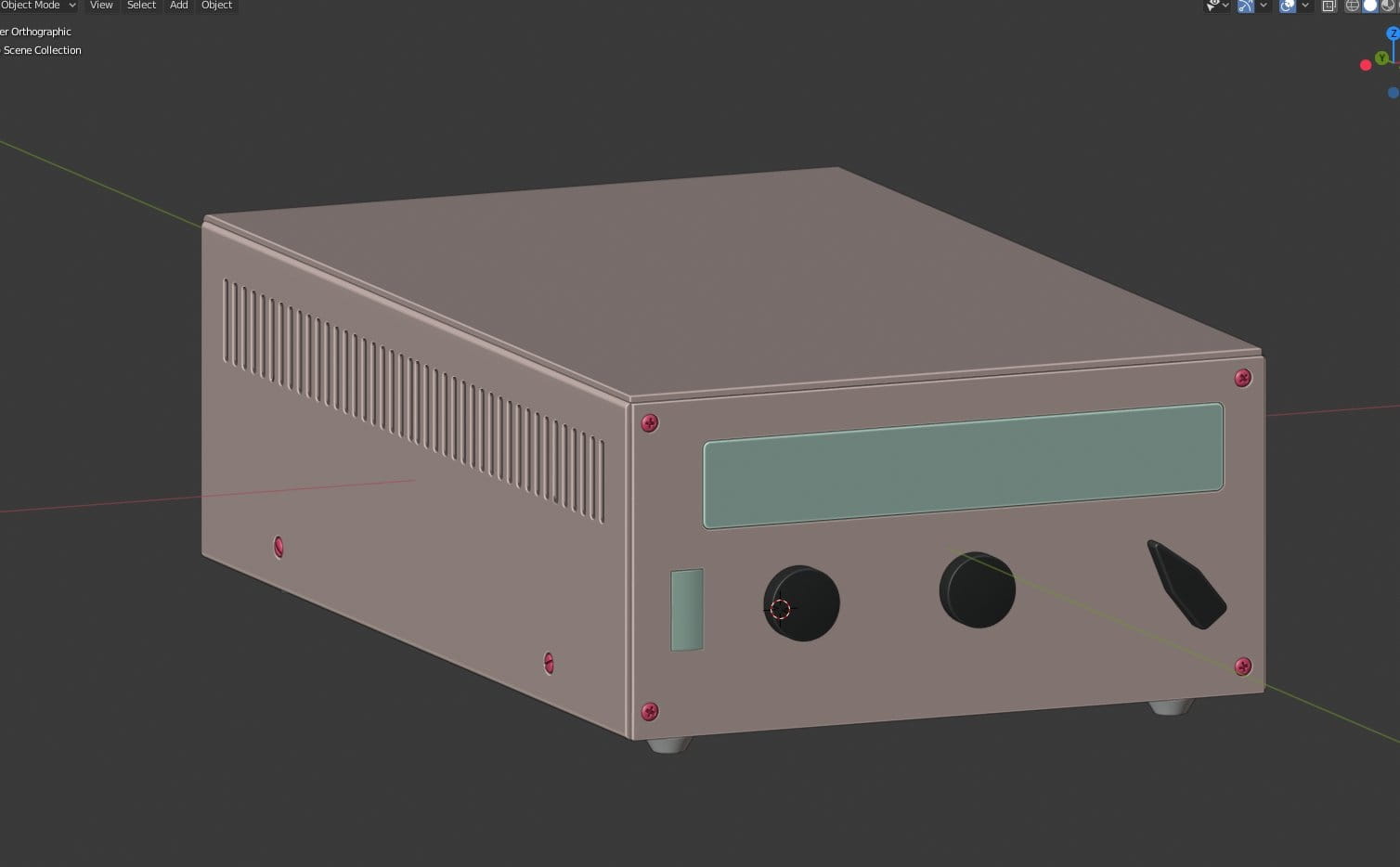

Braun CET15 is not very complicated to model, but I wanted to make it near-perfect. I used color coding of materials to see what objects share the same material.

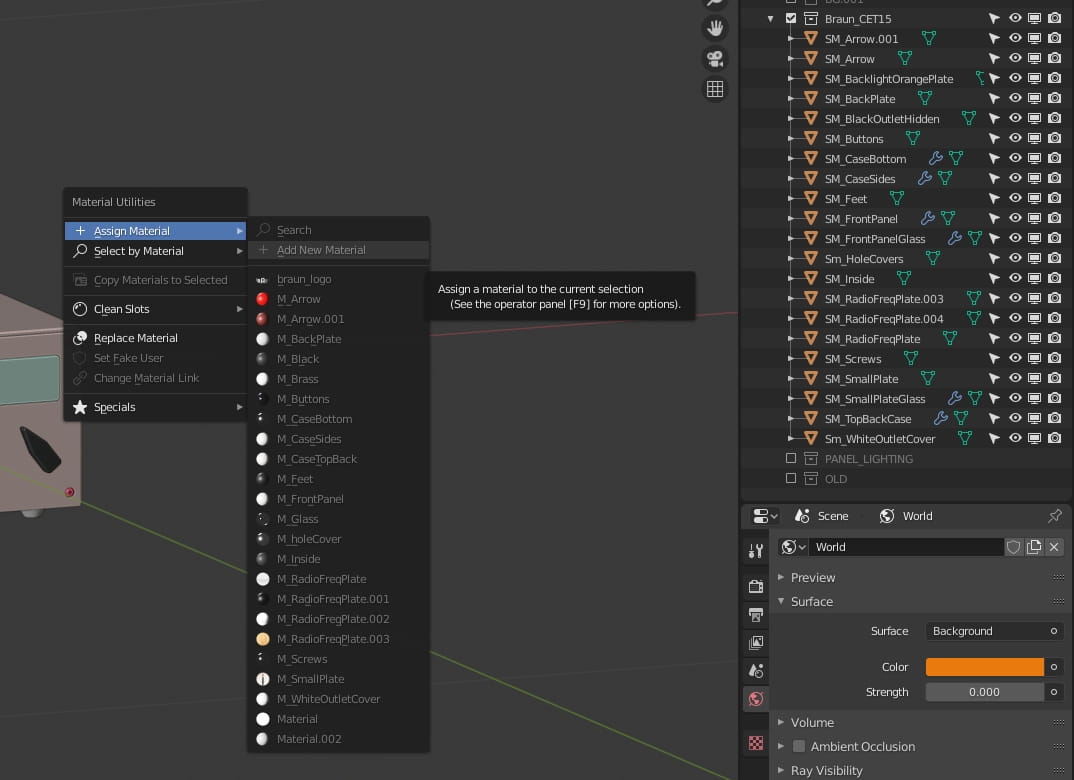

materials outliner

During modeling, there is always some mess in naming, but after finishing my object I wanted to control all name schemes for meshes and materials. I used a scheme known from Unreal Engine, where each Static Mesh has SM_ prefix and each material has M_ prefix.



nr 02268 Untitled

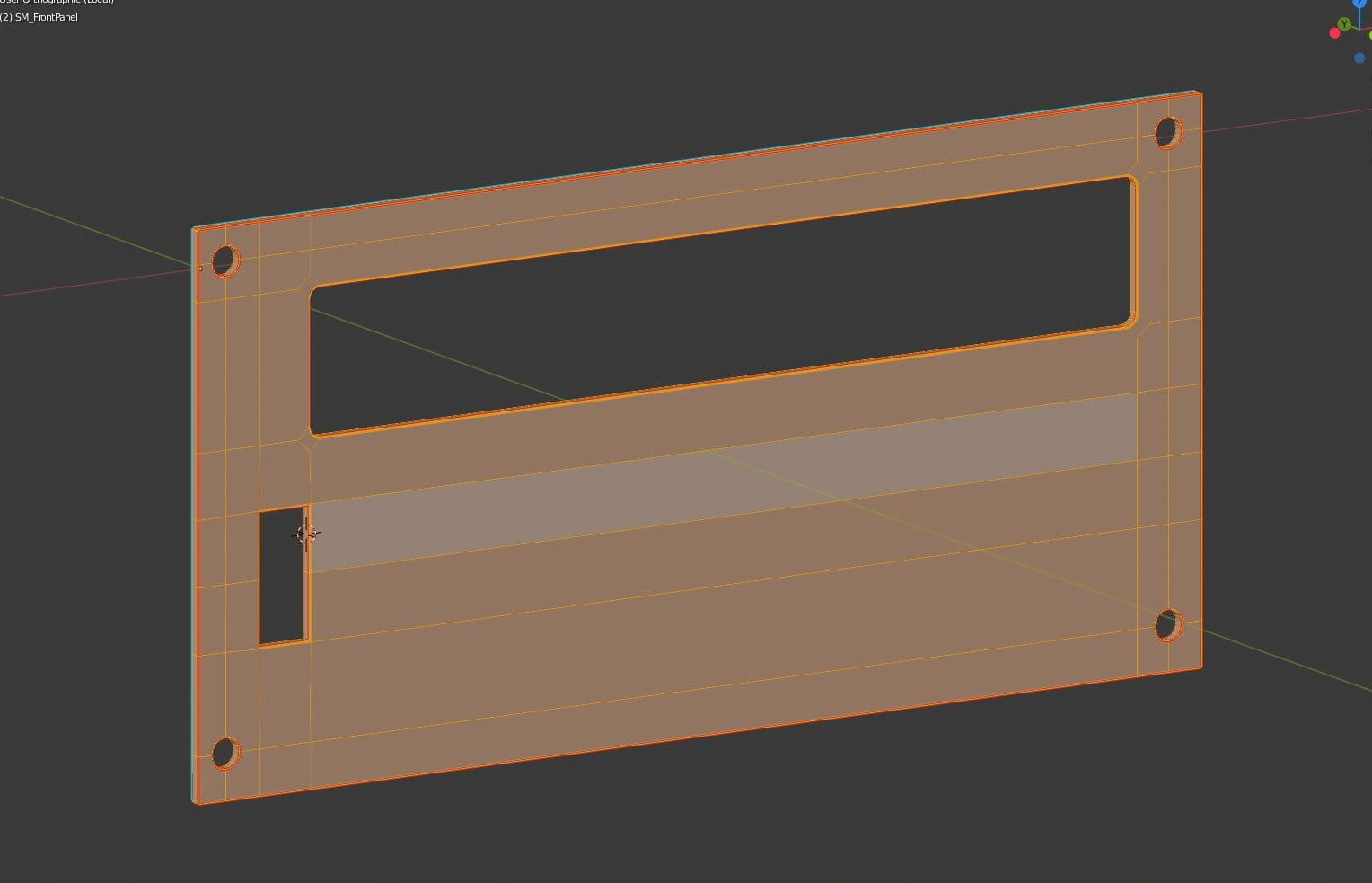

Front panel modeling started with a plane. Then I cut holes in the plane, beveled edges in the largest opening and extruded the plane. As the final step I added Bevel modifier. I use Speedflow add-on for beveling, it works in a fast and convenient way. And if you wonder how to cut holes in Blender, we have some old, but still very useful tutorial about that.



nr 02269 Untitled

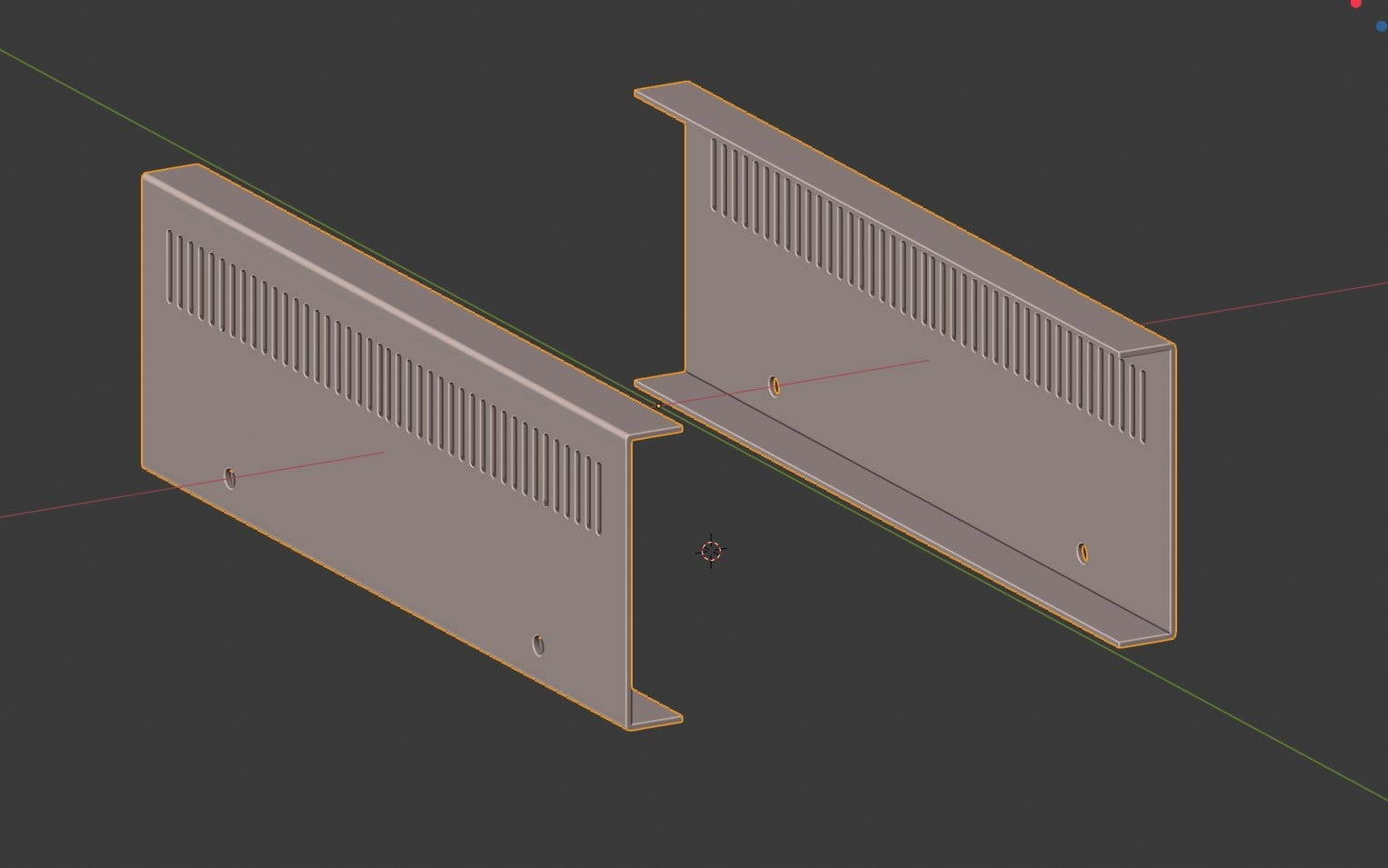

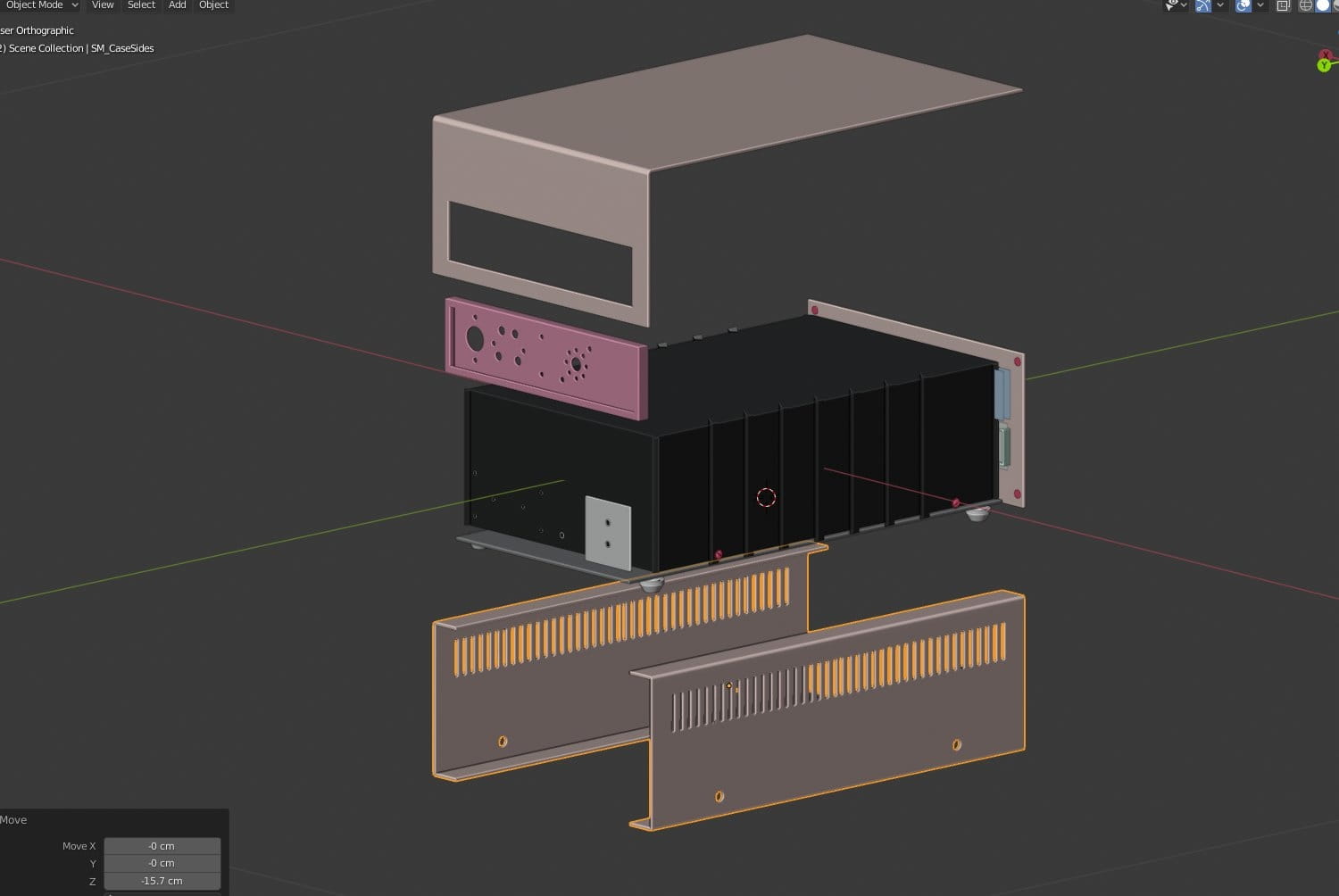

Sides were modeled separately. All holes were cut with a boolean operation - I made a single shape, created an array to multiply it and then used "difference" boolean operation. All steps can be automated if you have Boxcutter add-on (highly recommended).



nr 02270 Untitled

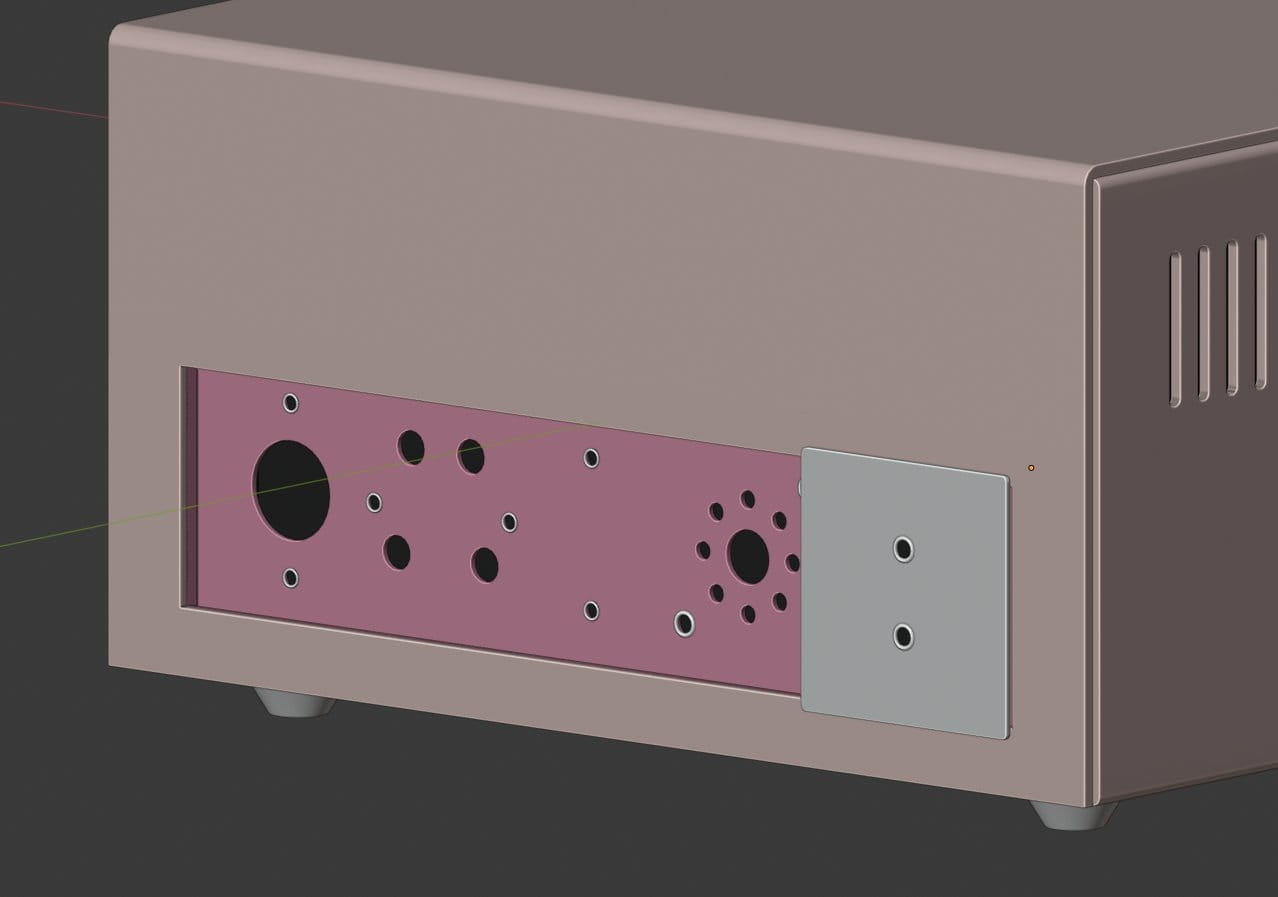

I used similar techniques for the rest of elements. There was some hole cutting in the back panel, I also included black box inside the device, because I didn't wnated light leaks through side holes.



nr 02271 Untitled

Back panel details.



nr 02272 Untitled

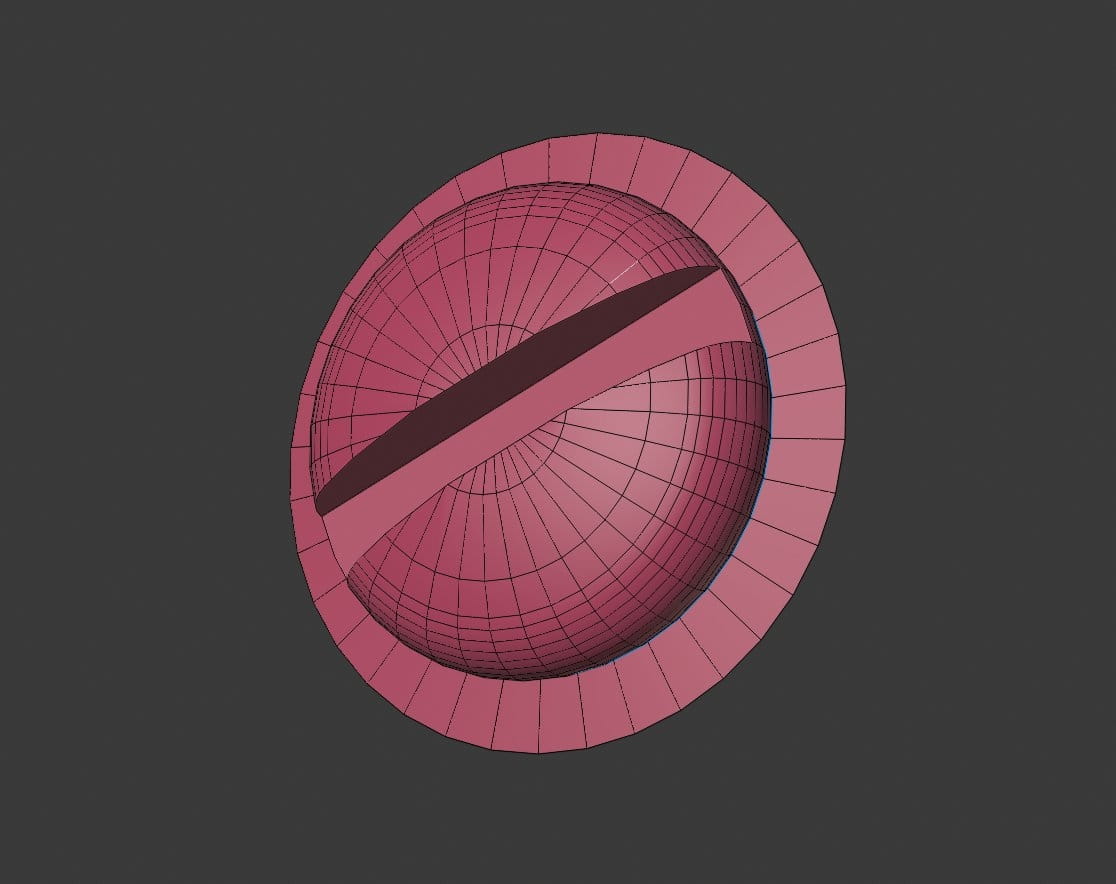

I modeled two kinds of screws and then copied them and placed them. After that, I collapsed all screws to one object.

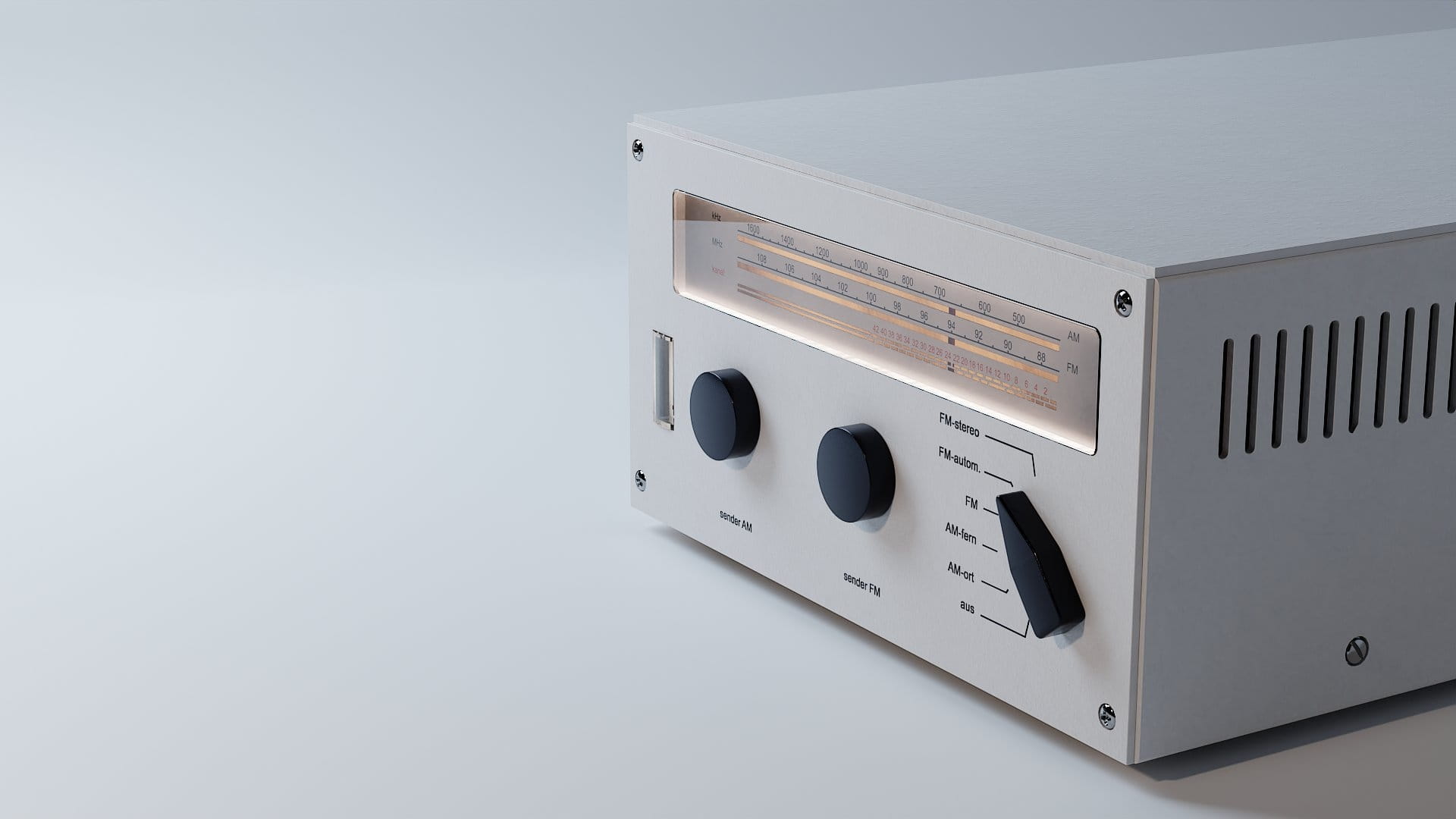

nr 02258 11NEW

The element that demanded the most exepriments was radio frequency plate and its lighting. There are many ways to lit this piece - you can use area lights, spot lights, you can make all panel emissive, etc. But the most realistic result was achieved due to detailed approach.



nr 02273 Untitled

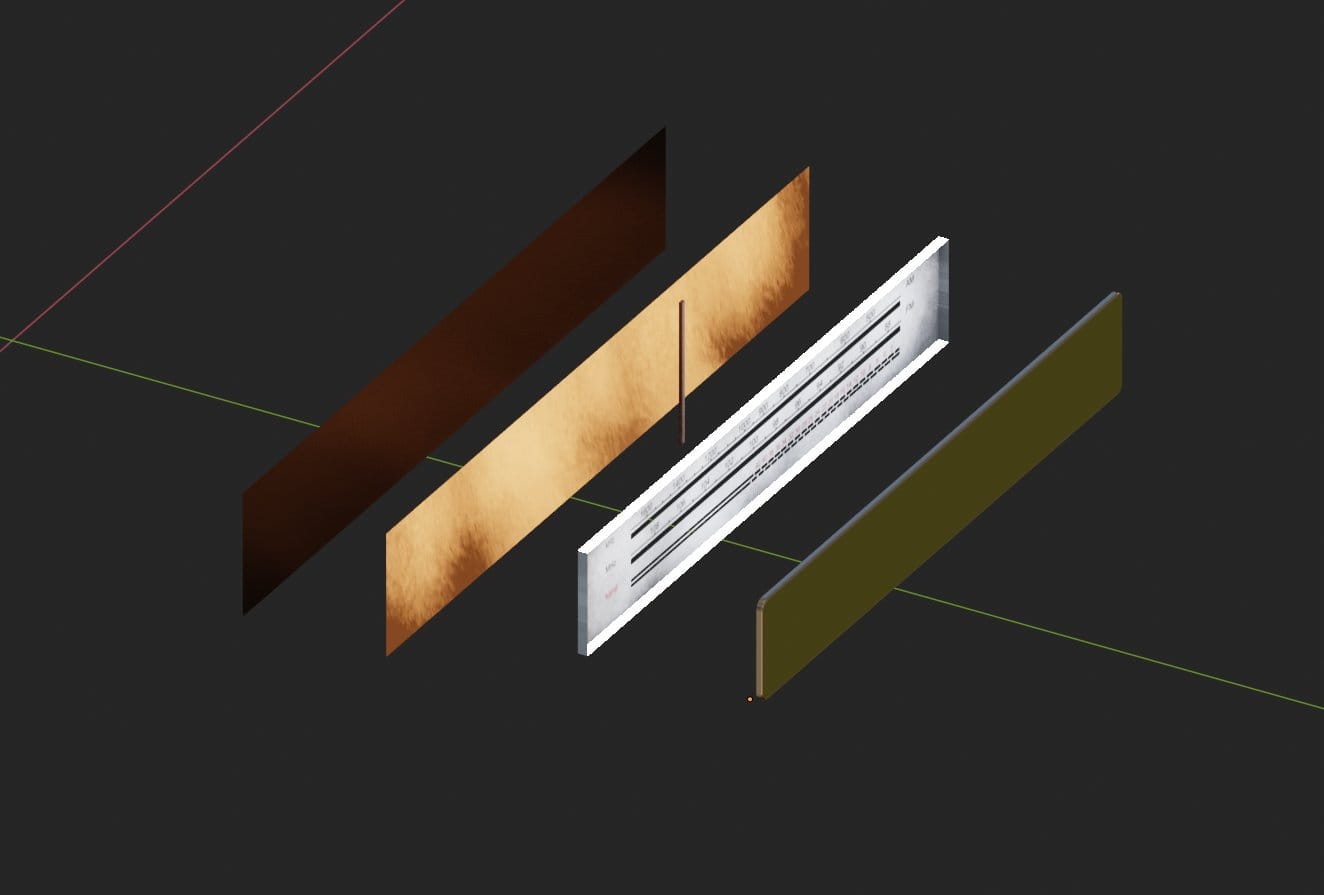

The panel consists of six elements (counting from the left):

  • light blocking plane (used only to prevent light leaks)
  • orange light plane - this is backlight behind the frequency selector
  • frequency selector - just a needle with red tint
  • text panel with holes
  • bottom and top light planes in text panel - they are barely visible here, but the bottom and top horizontal sides of text panel are a separate objects that emit light. They are needed to lit the text.
  • glass cover - a solid beveled rectangle with a Principle shader (transmission 100, roughness 0)



nr 02274 Untitled

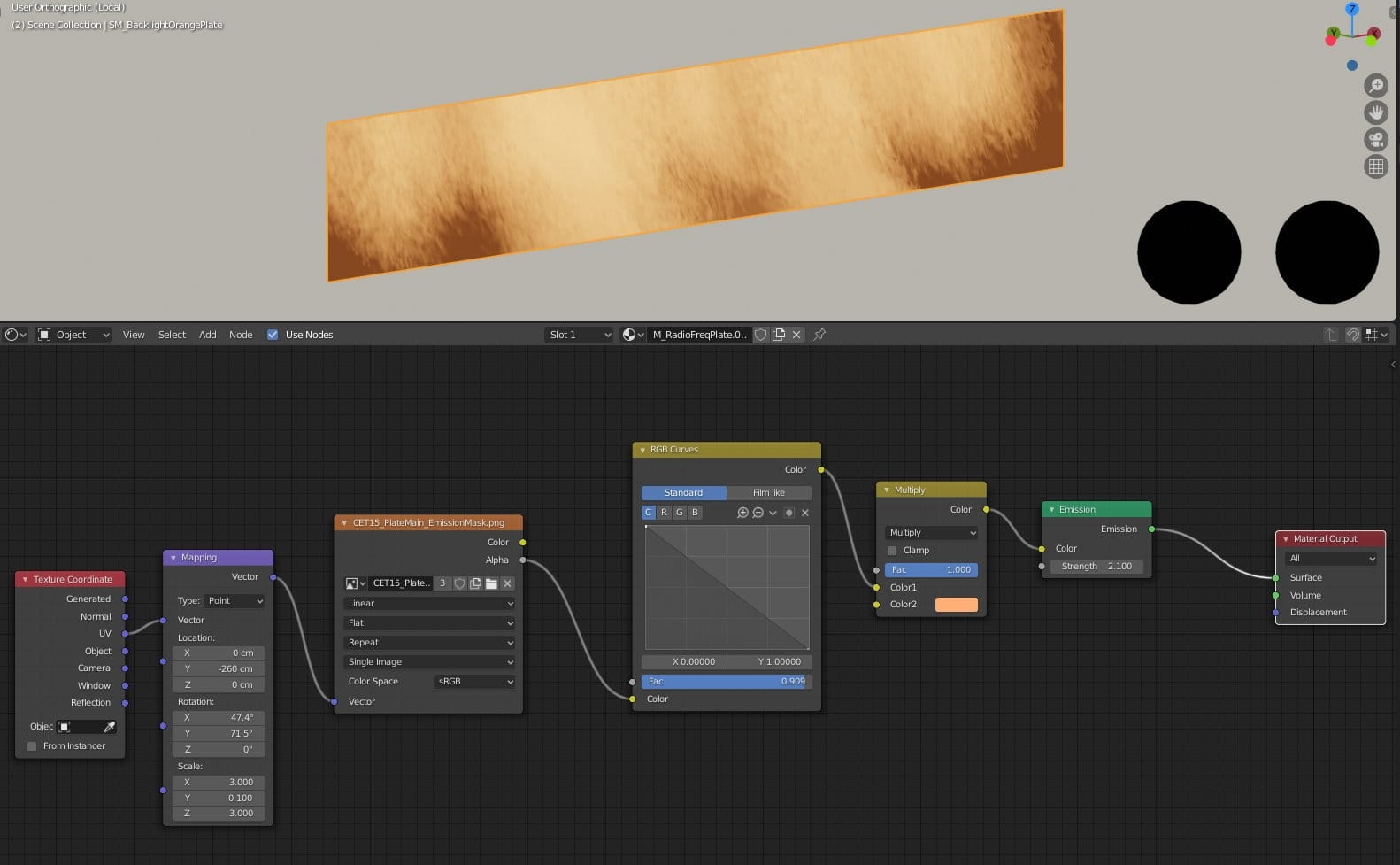

For background emission we used a simple plane with a material that mixes some dirt map with orange color. This way I achieved some "real-world" imperfections of light intensity.



nr 02275 Untitled

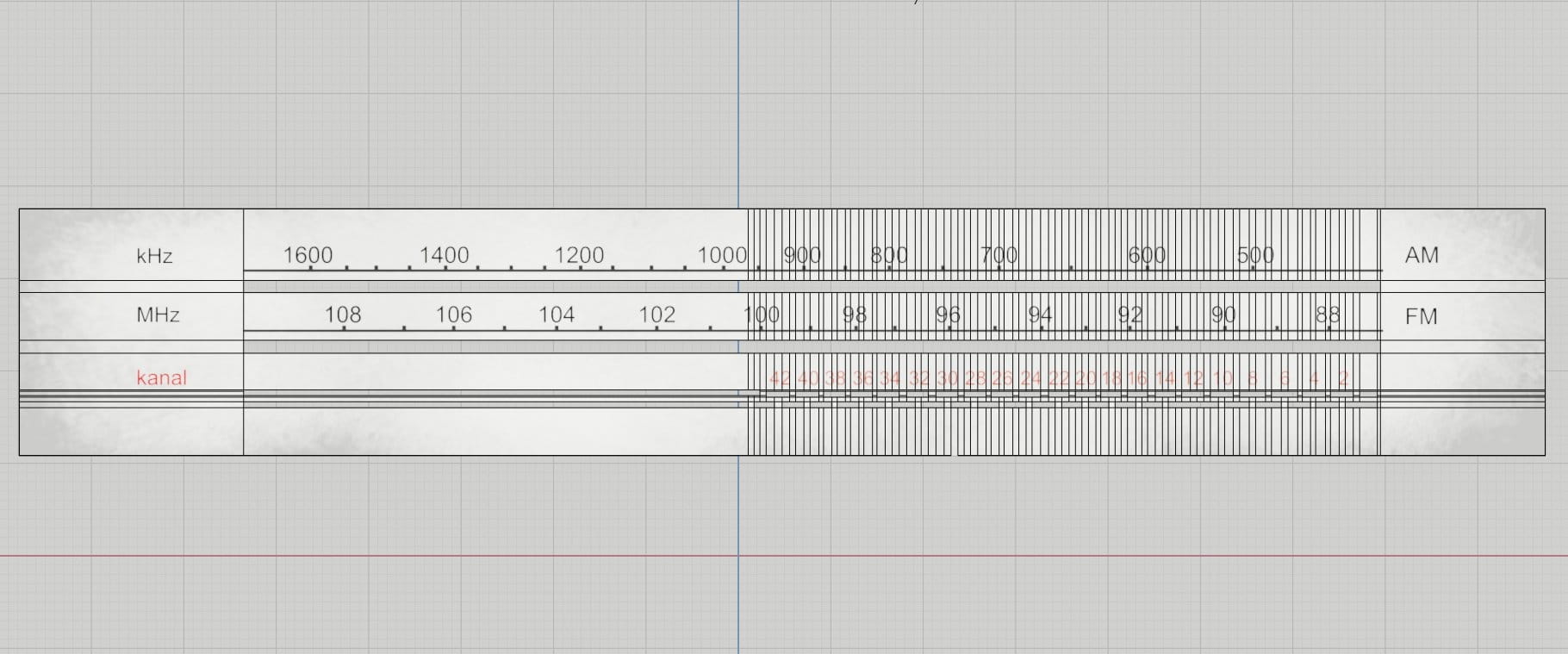

Text panel is not optimized, but the model is meant for arch-viz, not games and it is not really heavy, it consists mostly of simple shapes, so I didn't bother too much to clean it.



nr 02276 CET15_PlateMain

Texture for panel was made in Photoshop.



nr 02277 Untitled

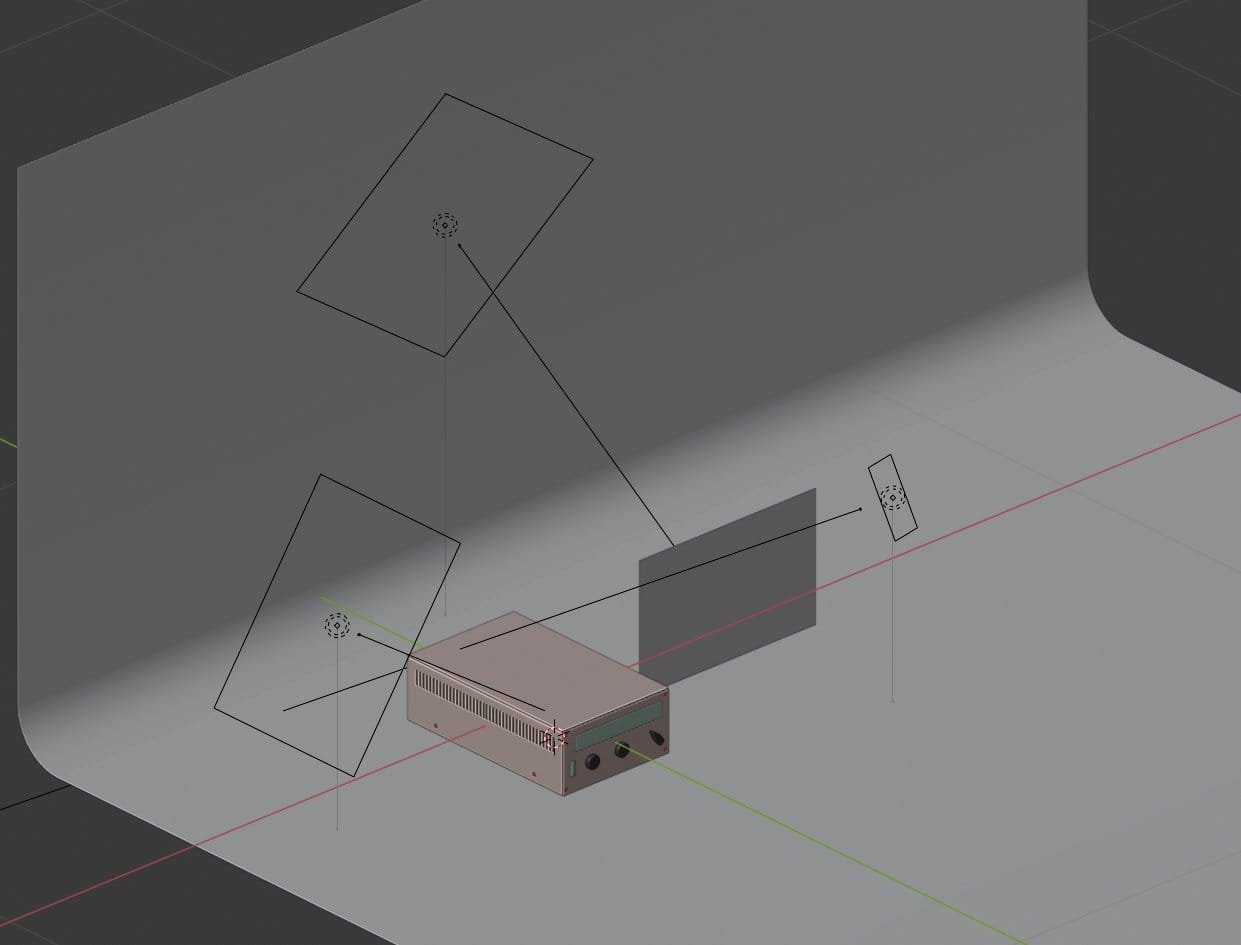

The rest of elements were created similar way. After completing all modeling and naming I exported all models that were parts of radio as a single FBX file and imported it to Substance Painter. I will not cover texturing here, because it was really simple process, mostly consisting of using Source materials. It wasn't my goal to make old and dirty radio so I had to be minimalistic when it comes to texturing. And now, the lighting! I really like area lights, when it comes to studio lighting, I used three of them. First light is on the front and it provides warm tone, the other two are colder.



nr 02278 Untitled

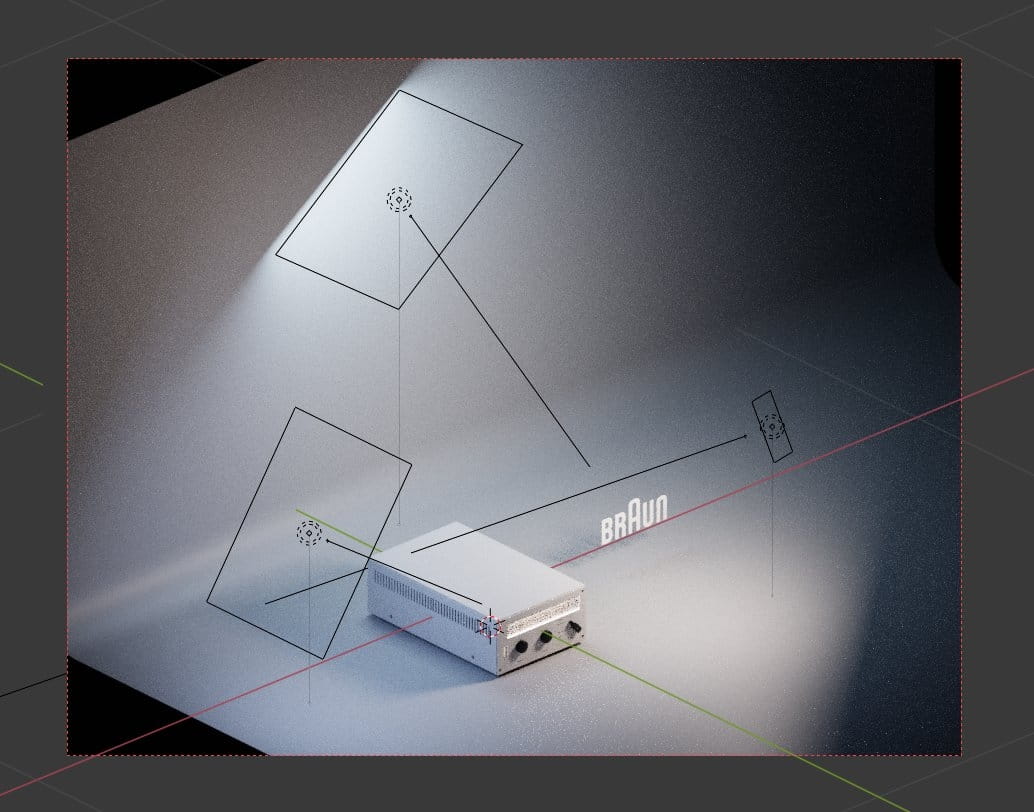

Viewport rendering. You can see that I also added Braun logo on the right. It is a simple image imported as plane with a little help of "Import images as planes" Blender built-in add-on.

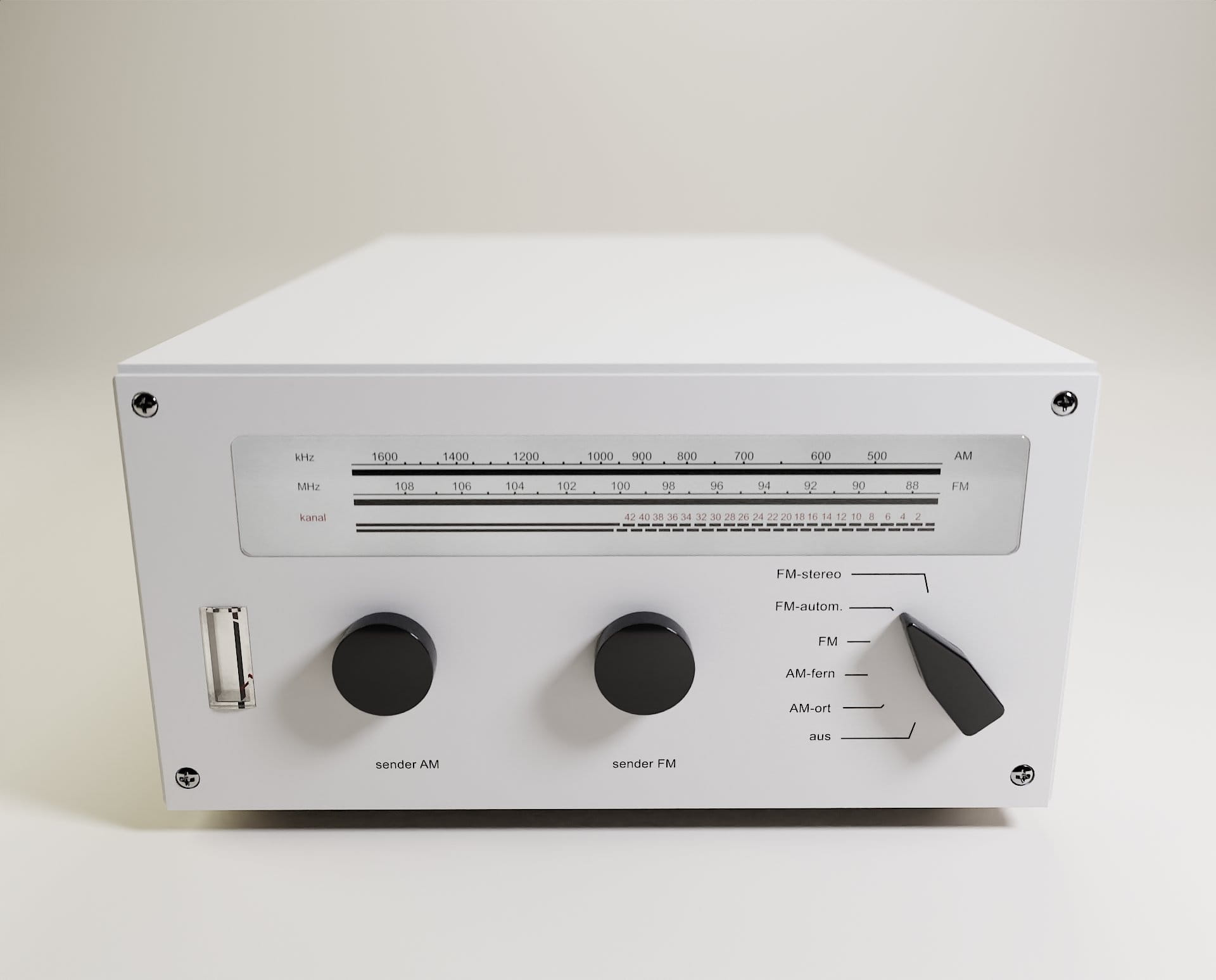

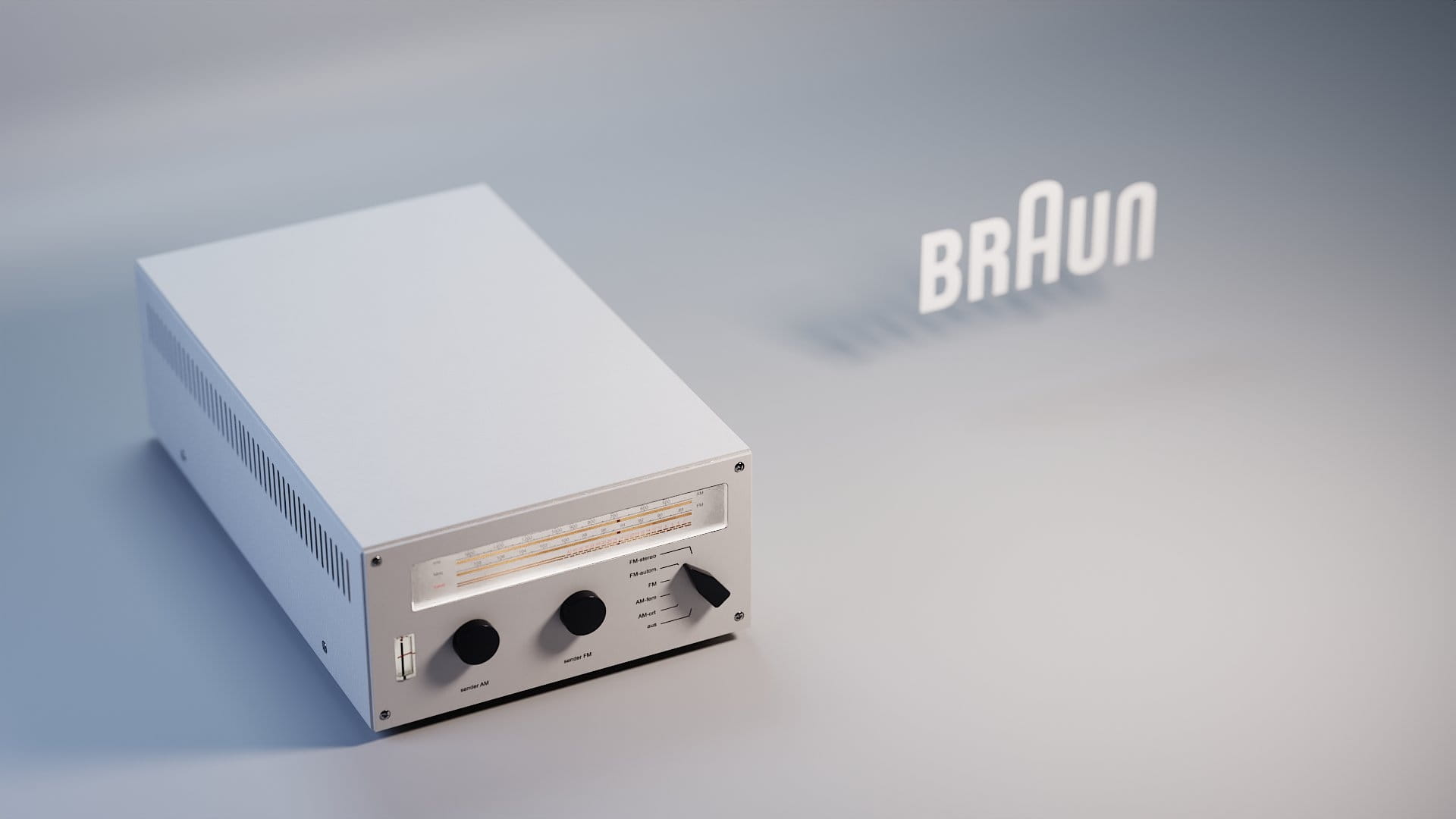

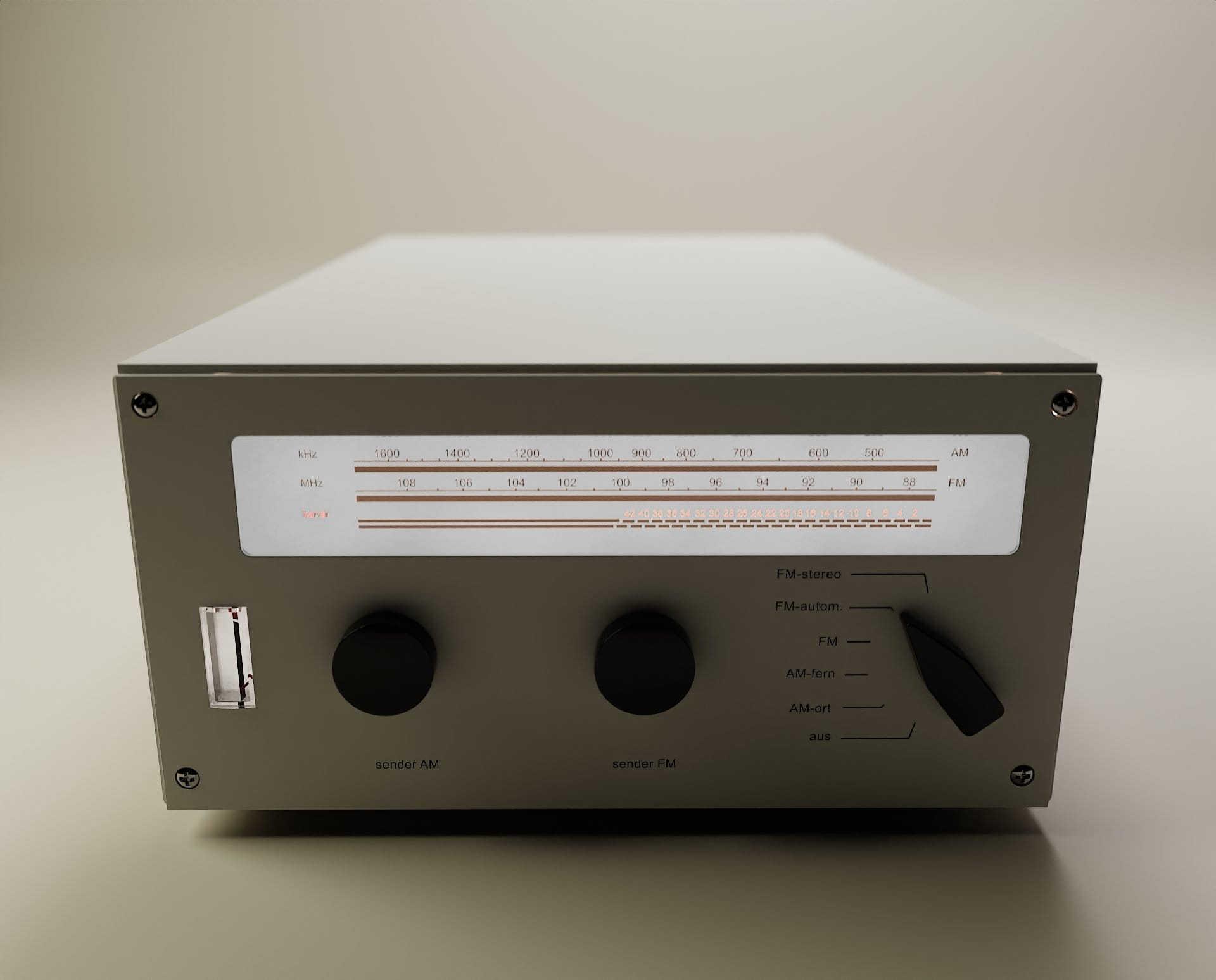

Below are the renders from different stages of this project, some with different materials and lighting setup:



nr 02256 08



nr 02257 09

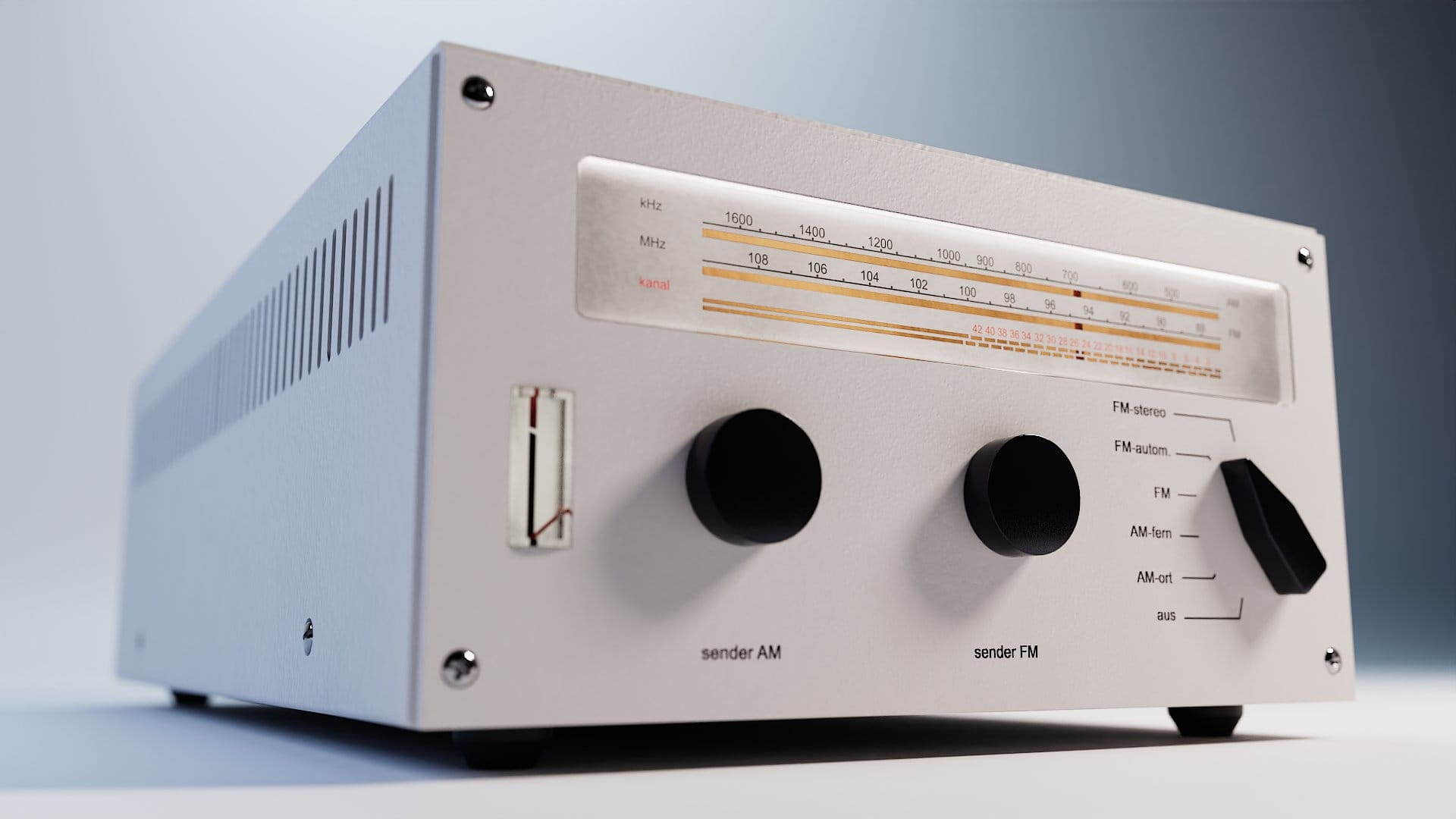

nr 02259 13NEW



nr 02261 15NEW

Thanks for reading! :)



Author: Michal Franczak Editor: Michał Franczak
