Making of a ECh Loft - Evermotion Challenge 2015

Egor Goray - Threedex Studio 2016-04-26 14:51 tutorial  > 3ds MAX  > modeling
| 0

Tutorial by Egor Goray.

Hi Everyone. I`d like to share the `making of` for my project ECh_Loft. This scene was created for Evermotion Challenge 2015 Whola Lotta Loft!



Egor Goray on Facebook.

Click on image to enlargeUntitled_evermotion_2.jpg

As main reference I choose images from this design.Also I decided to use sea cargo container in my loft.



Modeling


Main work was to model fixtures, container, ventilation system, some accent details and create foliage.

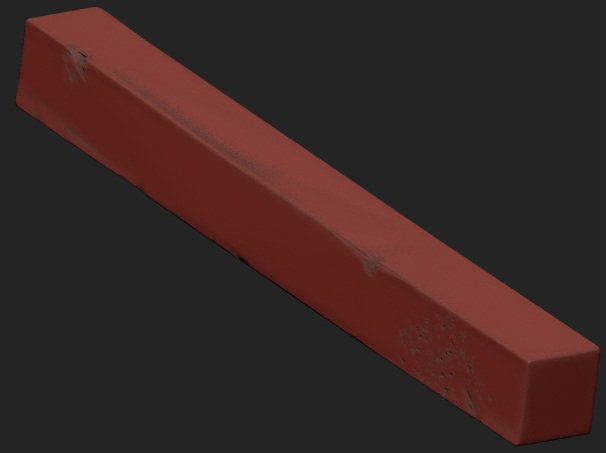

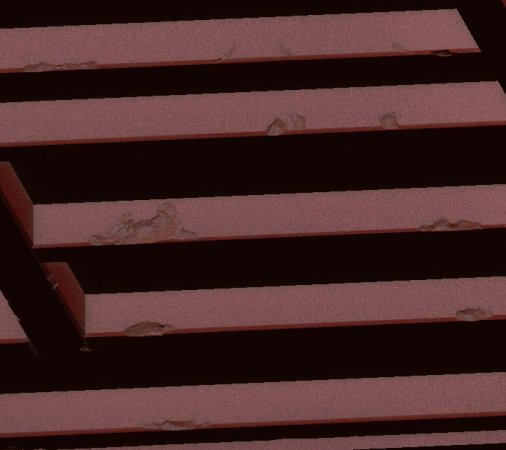

Furniture was partly used from 3dsky.org, but mostly modeled by myself. For wood and concrete bulks I have used ZBrush to create damage effects.



Click on image to enlargeevermotion00747.jpg

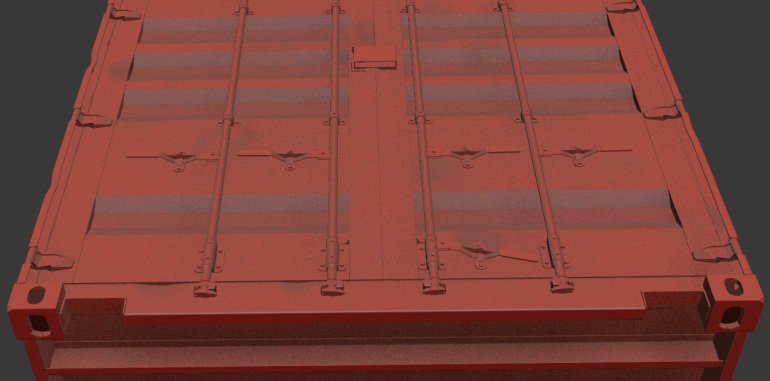

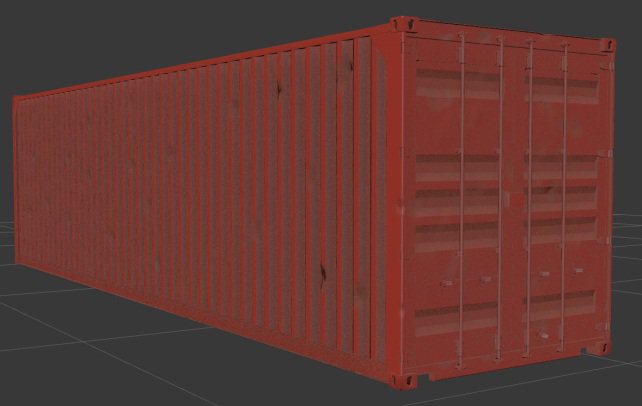

For container and vent I`ve discovered Sketchup model repository https://3dwarehouse.sketchup.com



Click on image to enlargeevermotion00748.jpg

These are simple CAD models and need to be remodeled for proper geometry, but they are very good as base for modeling.



Click on image to enlargeevermotion00749.jpg

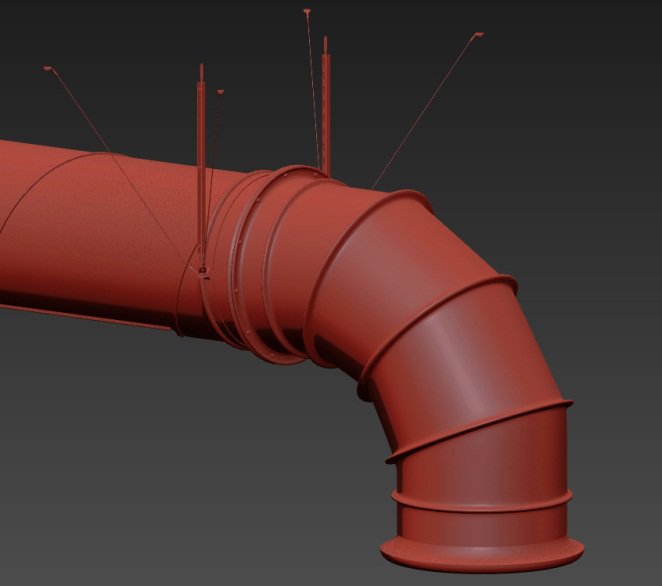

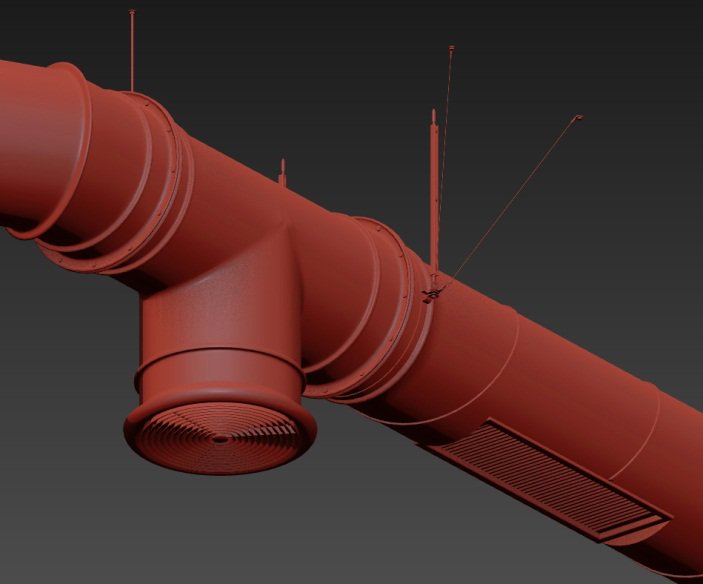

My vent model bases of Sketchup model.



Click on image to enlargeevermotion00750.jpg

My vent model bases of Sketchup model.



Click on image to enlargeevermotion00751.jpg

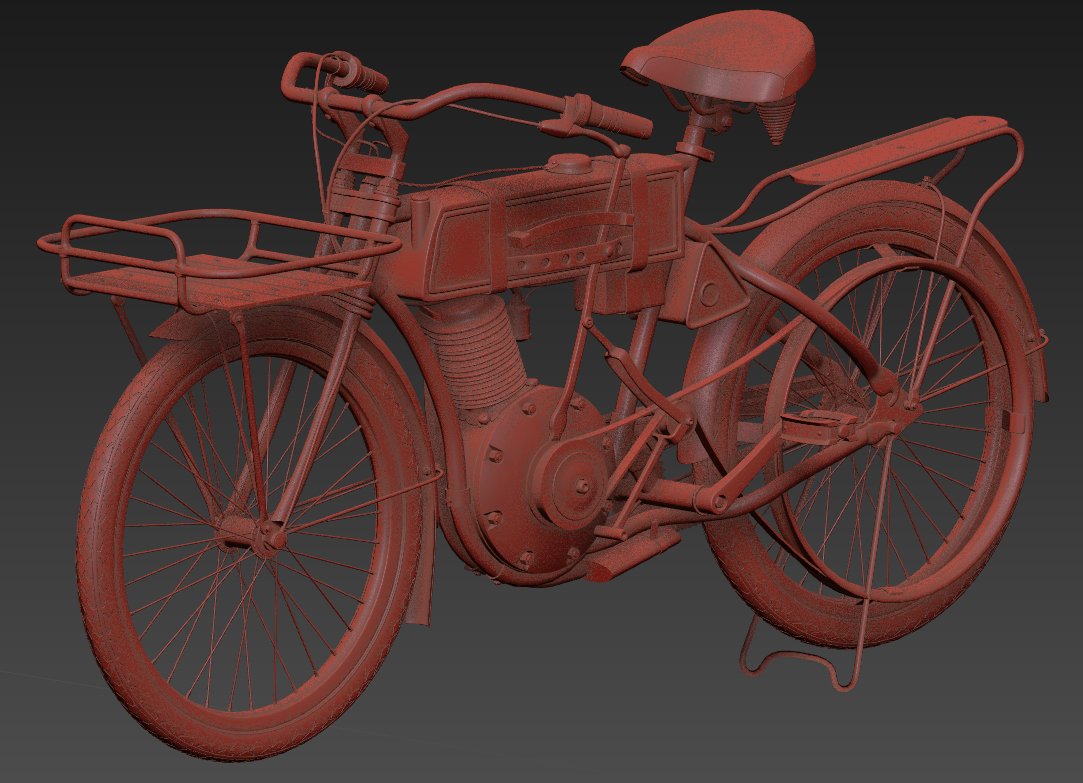

Some old school modeling.



Click on image to enlargeevermotion00752.jpg

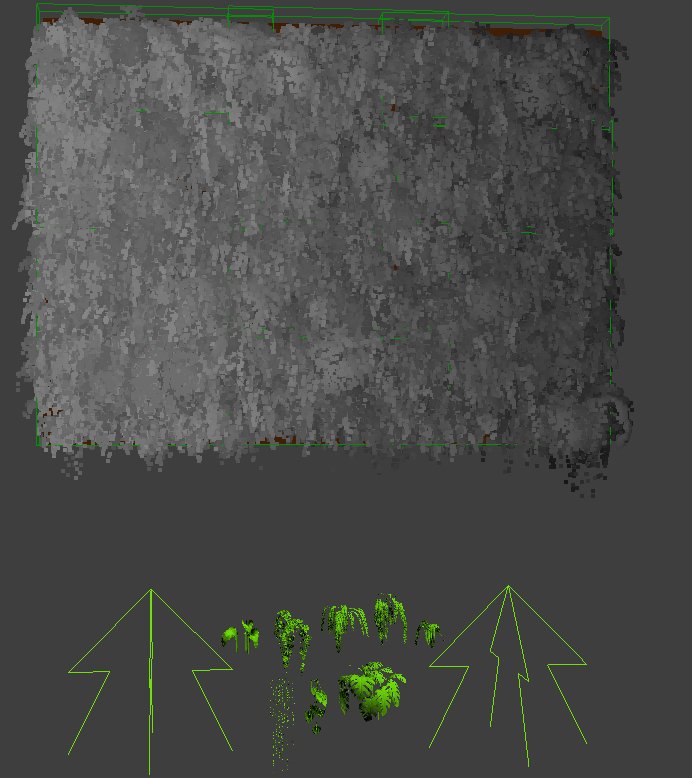

For foliage I have used multiscatters with variety of plants.



Click on image to enlargeevermotion00753.jpg

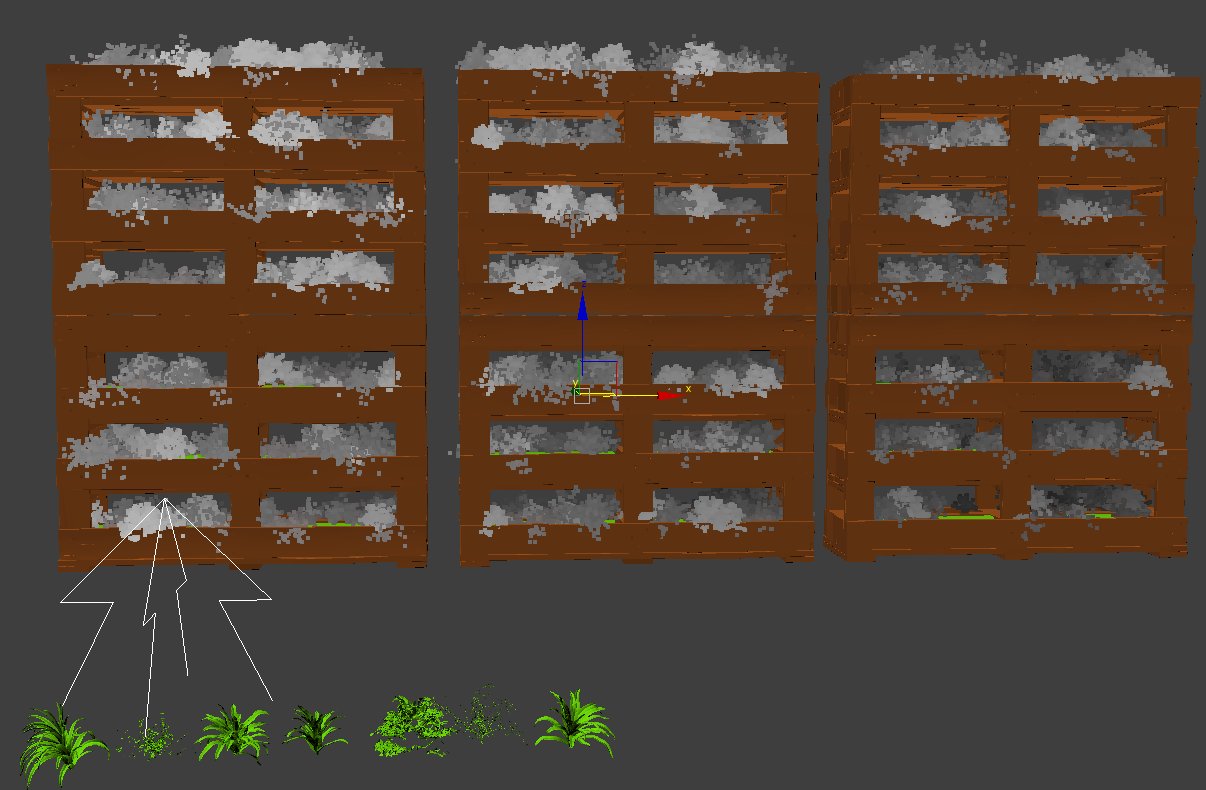

Foliage.



Click on image to enlargeevermotion00754.jpg

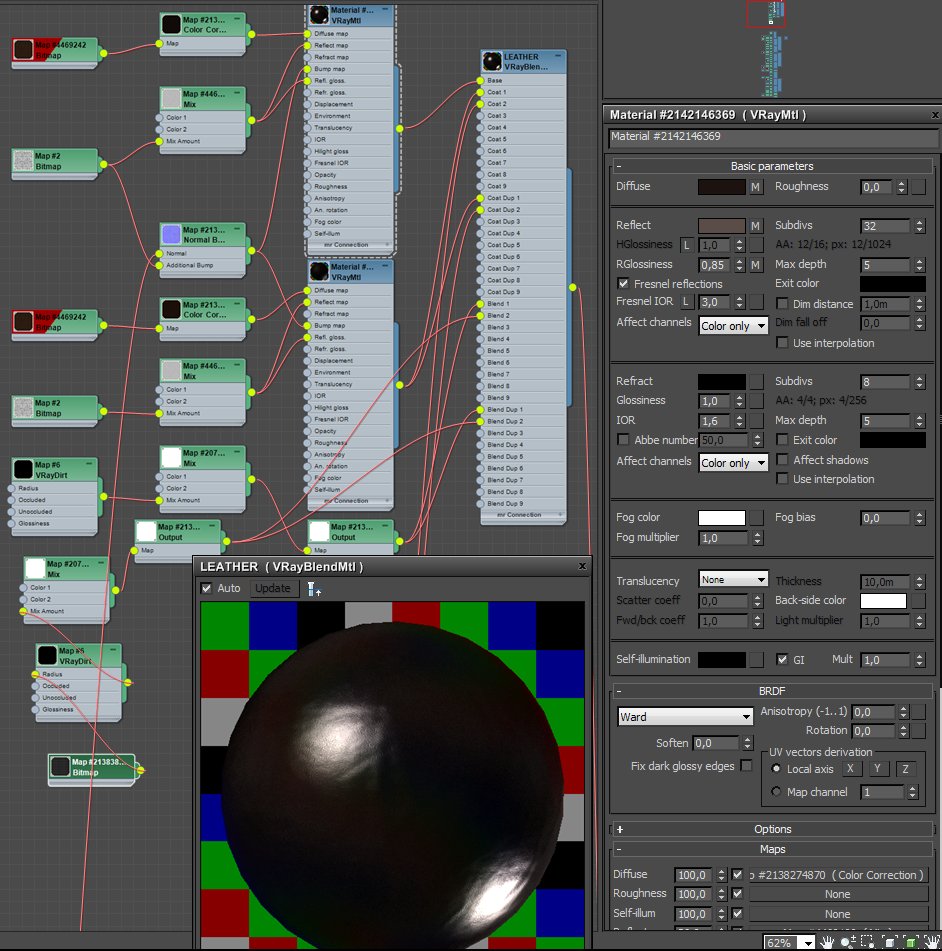

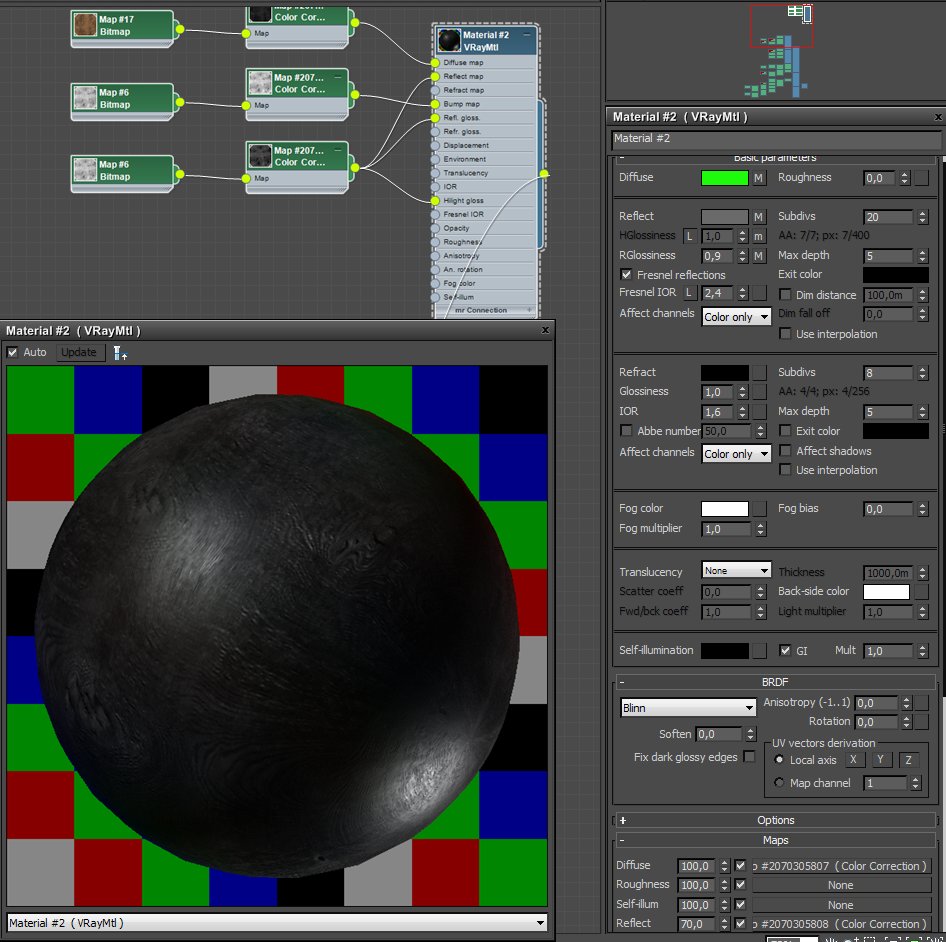

Main scene materials.



Click on image to enlargeevermotion00755.jpg

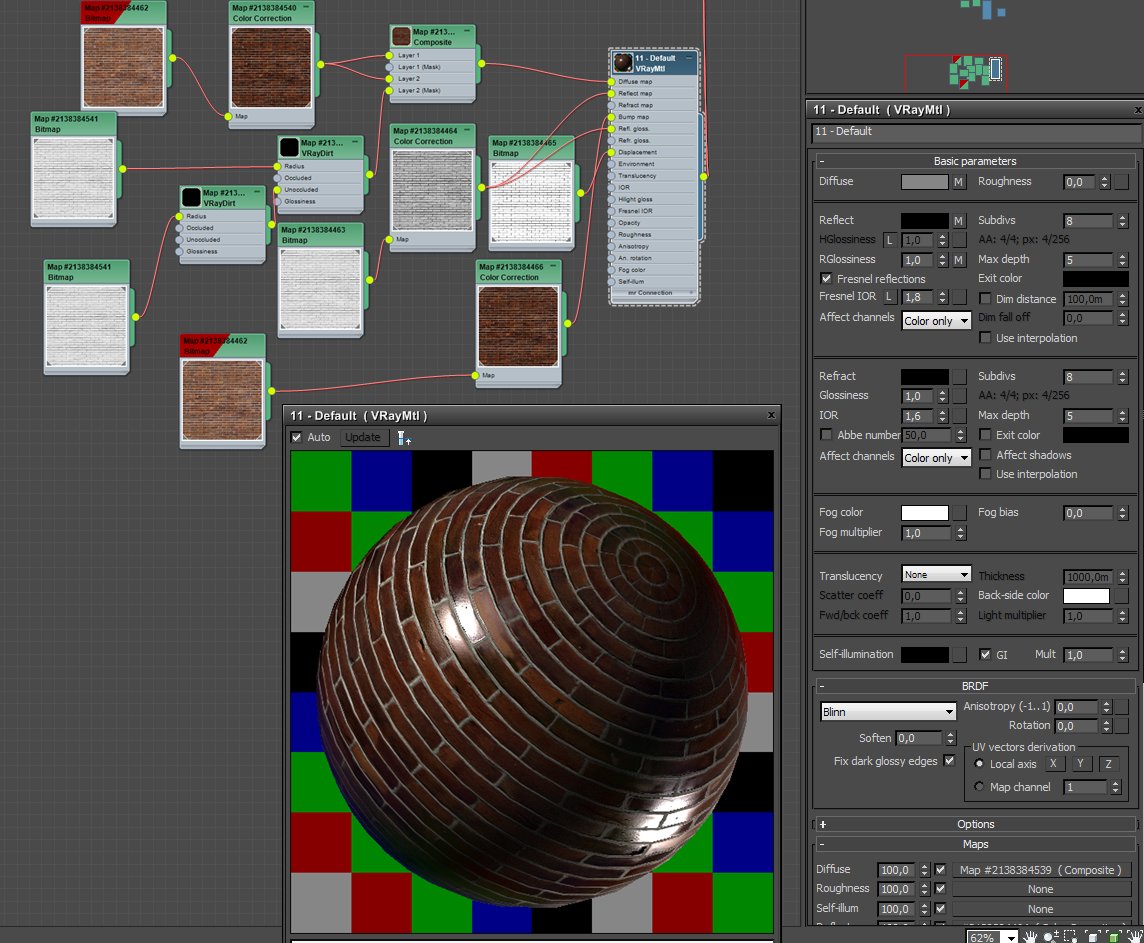

Main scene materials.



Click on image to enlargeevermotion00756.jpg

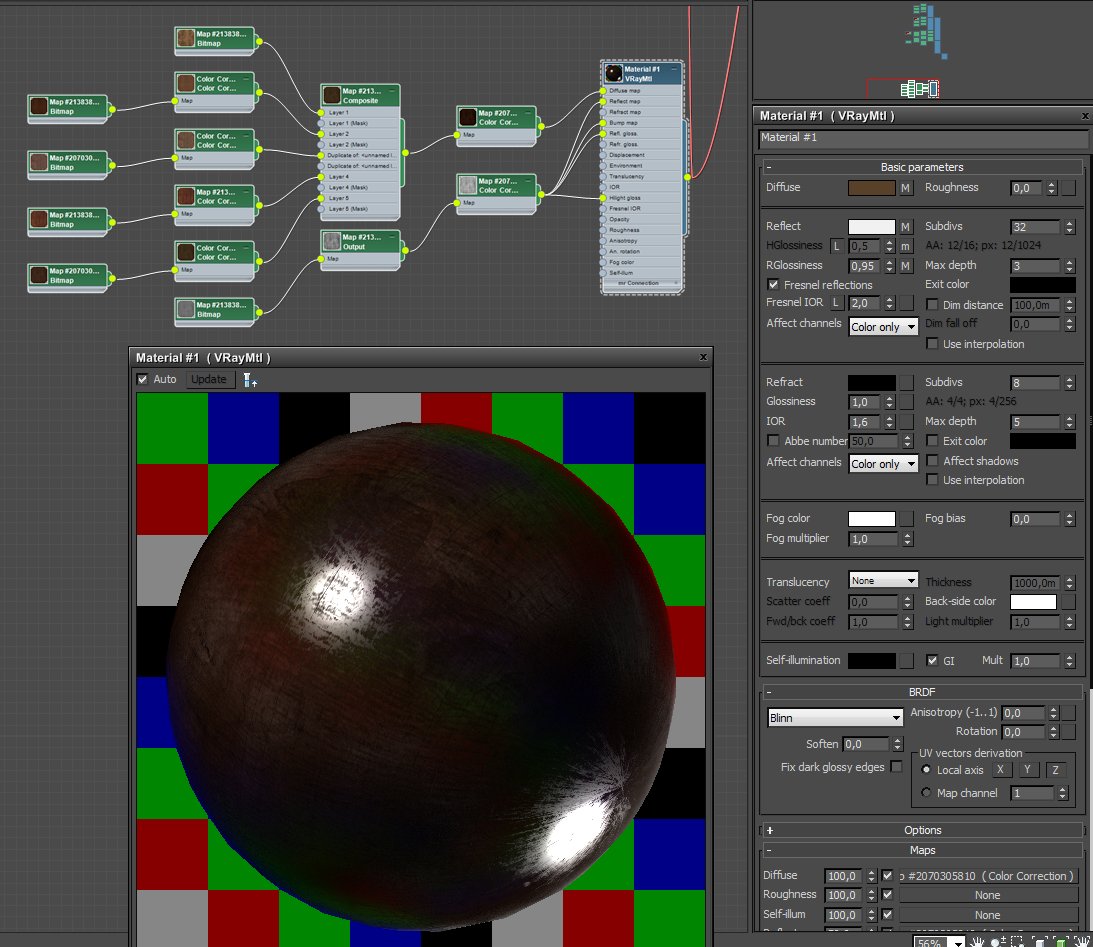

Main scene materials.



Click on image to enlargeevermotion00757.jpg

Main scene materials.



Click on image to enlargeevermotion00758.jpg

Main scene materials.



Click on image to enlargeevermotion00759.jpg

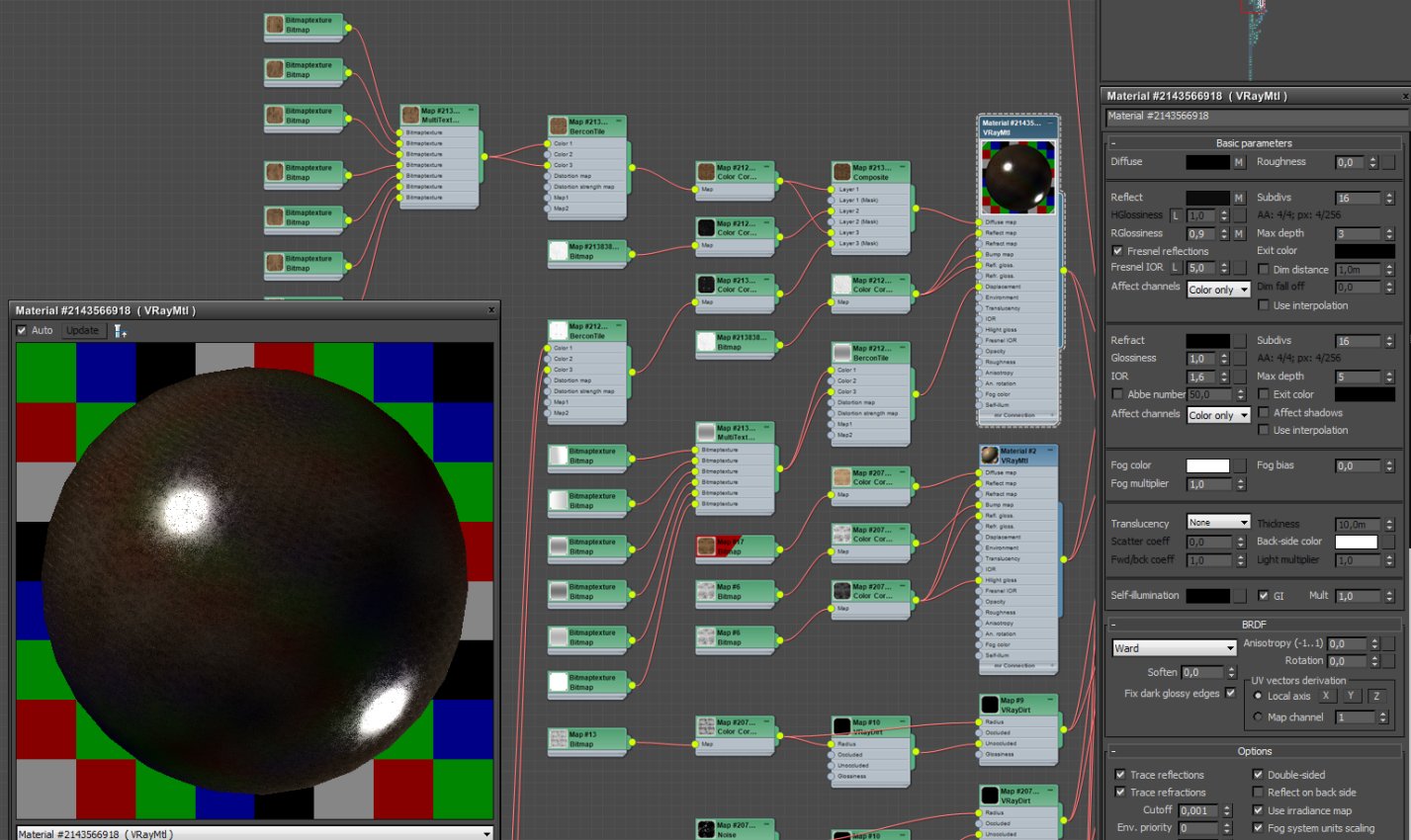

For floor I have used combination of Bercon Tile and Multitexture which gives nice wood board variation

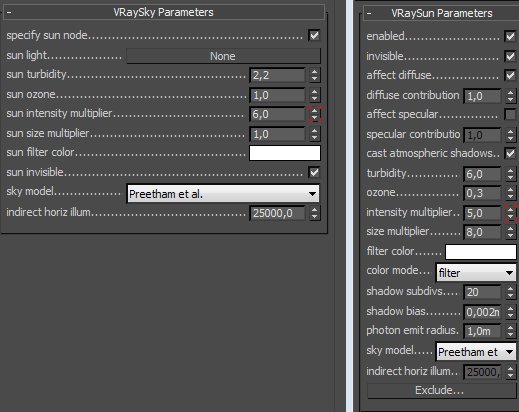

Rendering was done in Vray. For lighting I`ve used Sun+sky model and PhysicalCamera. Sun and Sky settings.



Click on image to enlargeevermotion00761.jpg

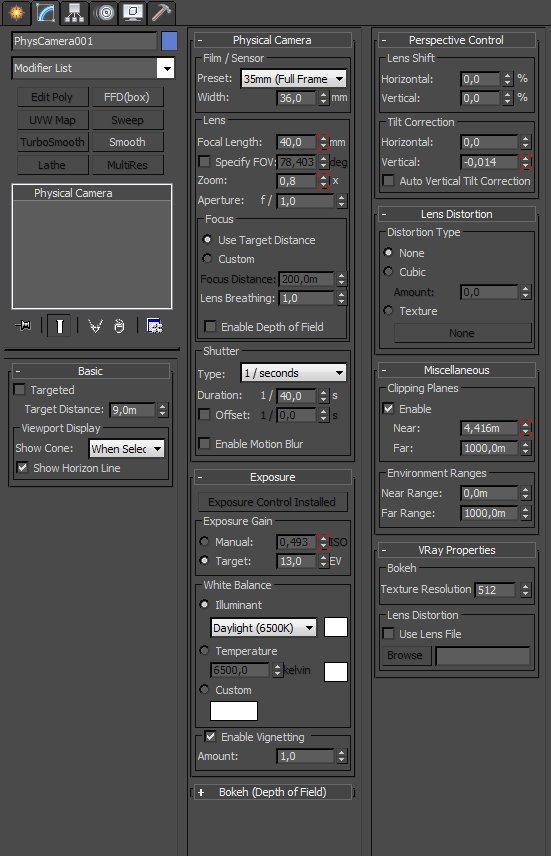

Camera settings.



Click on image to enlargeevermotion00762.jpg

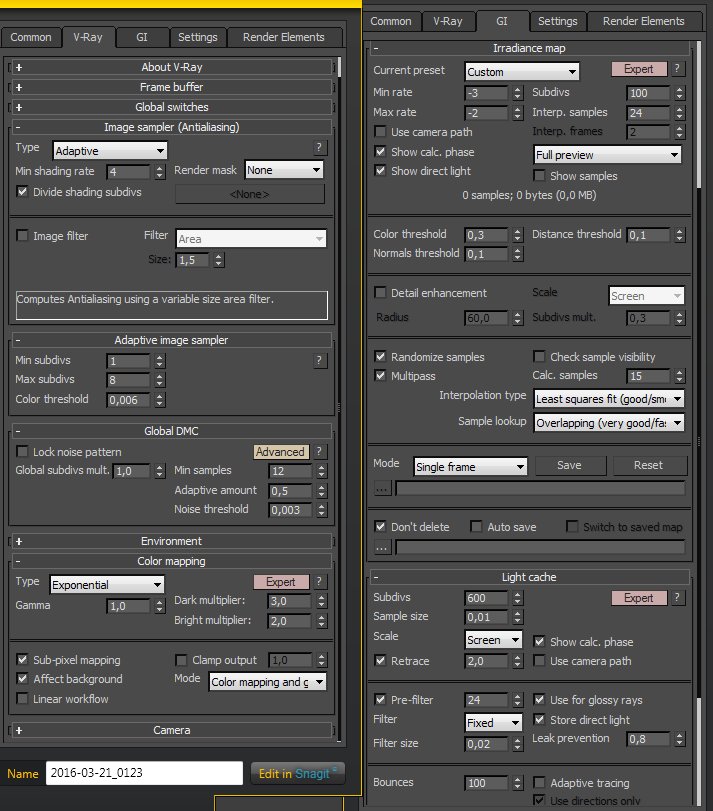

Rendering settings.



Click on image to enlargeevermotion00763.jpg

Raw render.



Click on image to enlargeevermotion00764.jpg

Passes.



Click on image to enlargeevermotion00765.jpg

Final render.



Click on image to enlargeevermotion00766.jpg

Final render.



Click on image to enlargeevermotion00767.jpg

Final render.



Click on image to enlargeevermotion00768.jpg

Final render.



Click on image to enlargeevermotion00769.jpg

Final render.



Click on image to enlargeevermotion00770.jpg

Final render.



Click on image to enlargeevermotion00771.jpg

Final render. To add some life to scene – I`ve used AXYS HD people (use diffuse filter to make them look more real).



Click on image to enlargeevermotion00772.jpg

Final render. I hope you will find this "making of" useful.


Author: Egor Goray - Threedex Studio Editor: Michał Franczak
